Equipment features

Equipment structure characteristics and technical performance

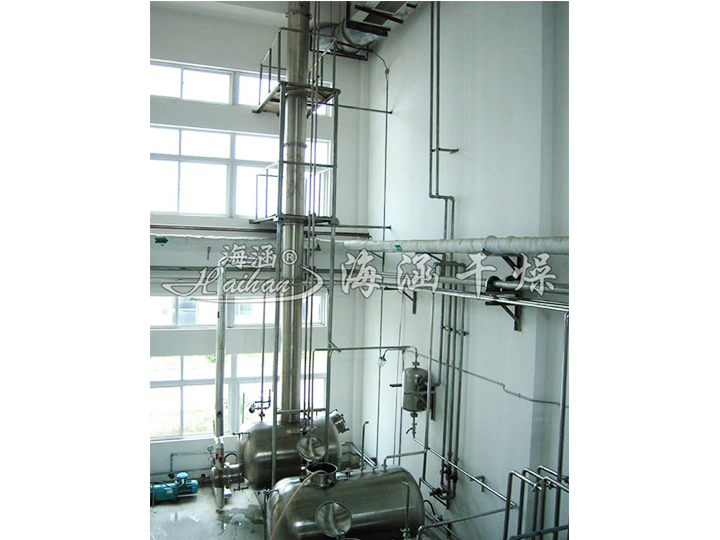

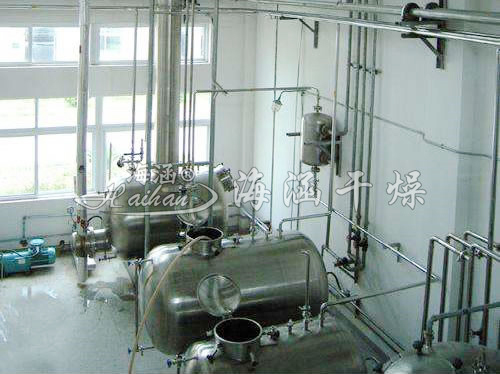

This device adopts highly efficient ceramic corrugated packing. The distillation tower body is made of stainless steel, which prevents the phenomenon of iron filings blocking the packing and prolongs the service life of the device. All the parts of the equipment that contact with alcohol such as condenser, pressure regulator tank, cooling serpentine tube are made of stainless steel to ensure that the finished alcohol is not contaminated.W type distillation kettle adopts detachable U-type heating tube, which can be moved out of the kettle during the overhaul and it is convenient to clean the outer wall of the heating tube and the inner wall of the distillation kettle.
ZW type is omitted indirect heating distillation kettle. The condenser adopts tube-type heat exchanger, or spiral plate heat exchanger can be supplied according to the requirements of users, the cooler adopts coil cooler, the coil cooler and supporting the supply of stabilised tank and specific gravity detector.

Device composition

W type has five specifications, each specification includes the corresponding configuration of the distillation tower, distillation kettle, condenser, cooler, pressure stabilisation tank, specific gravity detector. Among them, W-200, W-300 type distillation tower is directly installed on the distillation kettle, W-400, W-500, W-600 type distillation tower and distillation kettle are installed separately.
ZW type has ZW-200, ZW-300 two specifications, each specification includes the corresponding matching preheater, distillation tower, condenser, cooler, pressure regulator tank, specific gravity detector.
Other auxiliary equipment and instruments such as: measuring tanks, storage tanks, transfer pumps, rotor flowmeter, temperature indicator, etc. Users to provide their own, our factory can also be processed according to user requirements or ordered on behalf of the supply.

Scope of application

This device is suitable for pharmaceutical, food, light industry, chemical industry and other industries of dilute alcohol recovery. It is also suitable for distillation of other solvents such as methanol. According to the user's requirements, this device can distill dilute alcohol of about 30° to 90-95° alcohol. If the finished product requires high alcohol, the reflux ratio can be increased, but the output is reduced accordingly.

Technical parameters

◎Feeding concentration: 30%～80%.
◎Discharge concentration：90%～95%
◎Reflux ratio: R=13 (according to the concentration of inlet and outlet material)
◎ Residual liquid discharge alcohol concentration: W type ≤ 3%, ZW ≤ 1%.
◎Production capacity (kg/h): see the right table
