Working Principle

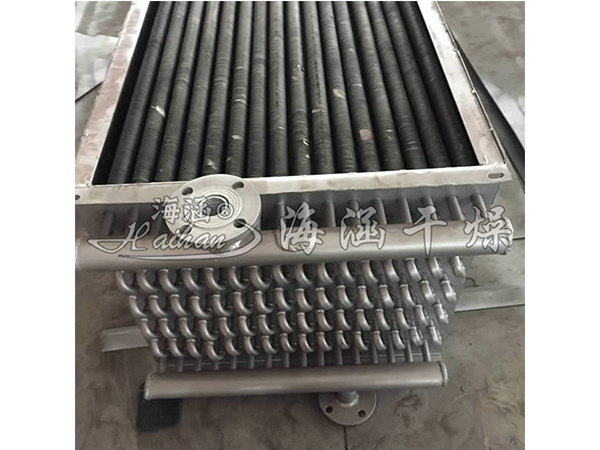

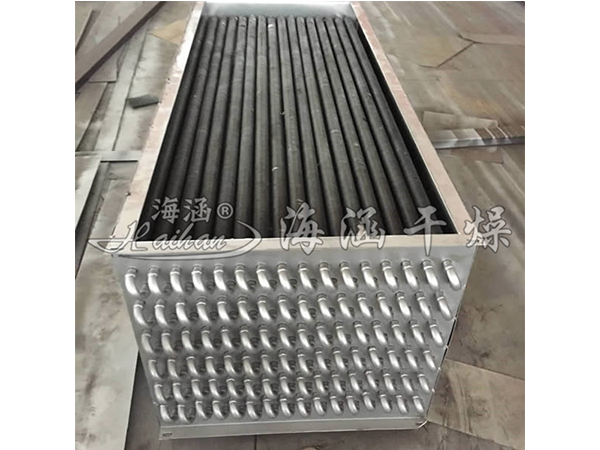

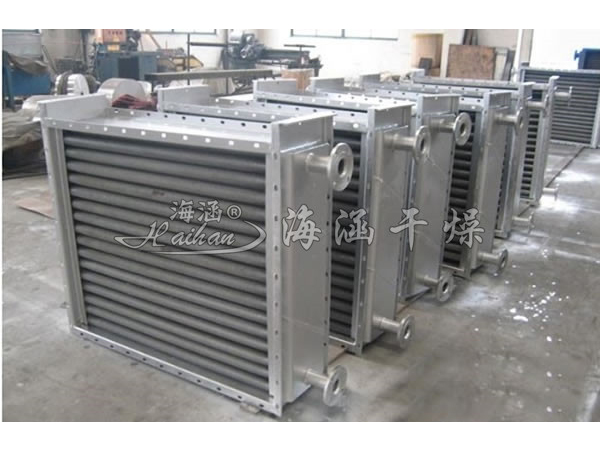

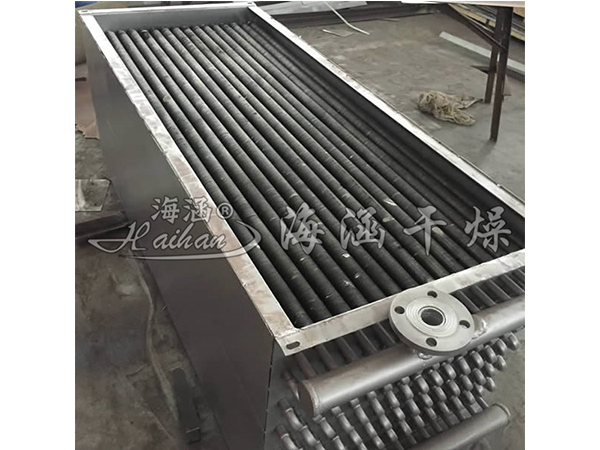

The spiral finned air heat exchanger produced by our company, also known as radiator and heat sink, is the main equipment in the heat exchanger device which cools or heats the air with hot or cold medium.

Scope of application

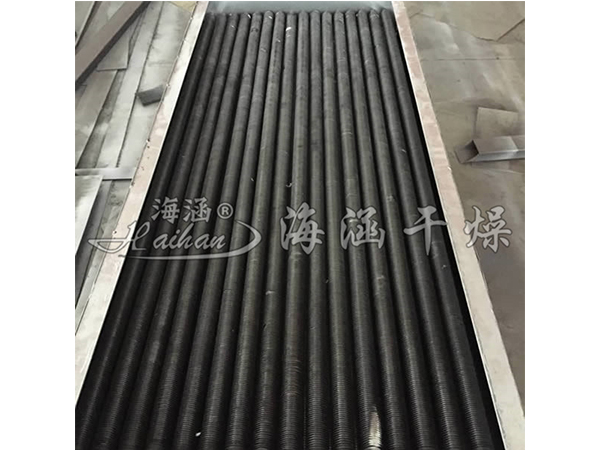

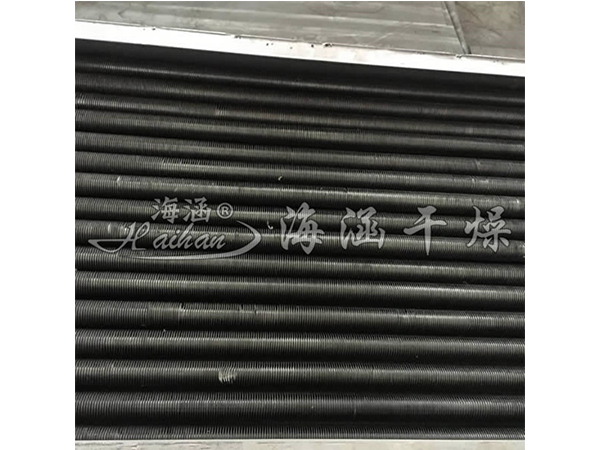

Radiator is used in hot air heating, air conditioning, cooling, dehumidification, drying and other projects, applicable to steam or high-temperature water can heat the air, through the brine or low-temperature water can cool the air. It is used in industrial and mining enterprises, light industry, papermaking, chemical industry, national defence, textile, electric power, dairy, ceramics, hospitals, theatres and other air-conditioning systems, its structure is composed of spiral finned tubes, the use of spiral finned tubes made of a series of products, a variety of models have a different size specifications.

Technical Parameters

Specification of fins when the heat source is hot water vapour or heat-conducting oil.

	stainless steels	carbon steel	aluminium
Pipe Size	Φ18×2	Φ19×2	-
Fin outer diameter	Φ38	Φ39	-
Fin thickness	0.24	-	0.4
Heat transfer area coefficient		0.64

Finned tube specification when heat source is hot air

Pipe Size	Φ63×3
Fin outer diameter	Φ103
Fin thickness	1.5
Heat transfer area coefficient	1.5

Ordering instructions
◎ Can be used with a variety of drying equipment, specifications and varieties, the use of materials: aluminium alloy, stainless steel, A3 steel surface galvanised, steel and aluminium composite, copper, aluminium winding steel tube. In addition, the radiator can be used for indoor and warehouse heating and dehumidification alone, our company can design and produce for the user.
◎ When ordering, must specify the product model, name, specify the length of the pipe, the number of pipes and rows.
◎ When ordering, if there are special specifications and requirements need to be negotiated, can be used with a variety of drying equipment, specifications and varieties, the use of materials: aluminium alloy, stainless steel, A3 steel surface galvanised, steel and aluminium composite, copper, aluminium winding steel tube. In addition, the radiator can be used for indoor and warehouse heating and dehumidification alone, our company can design and produce for the user.
