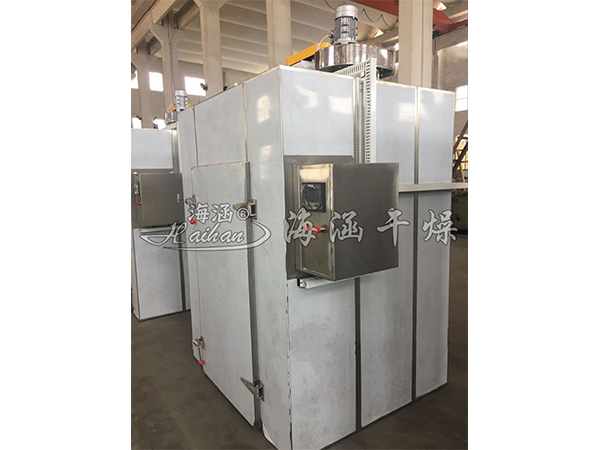

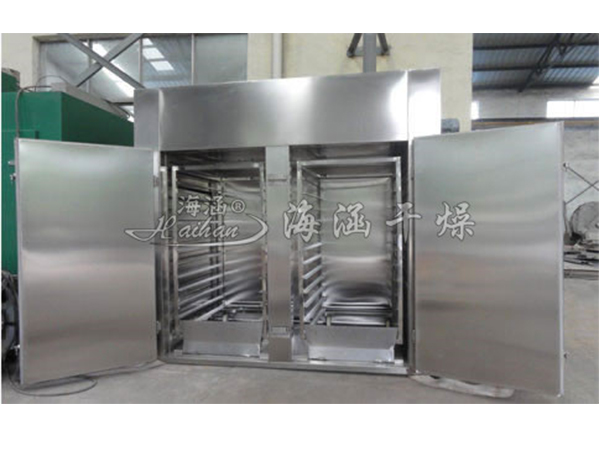

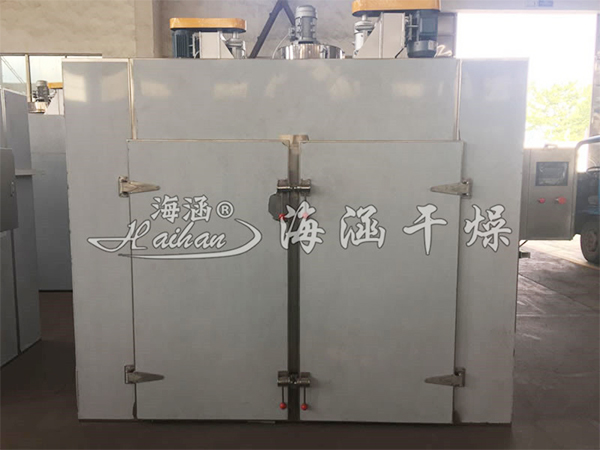

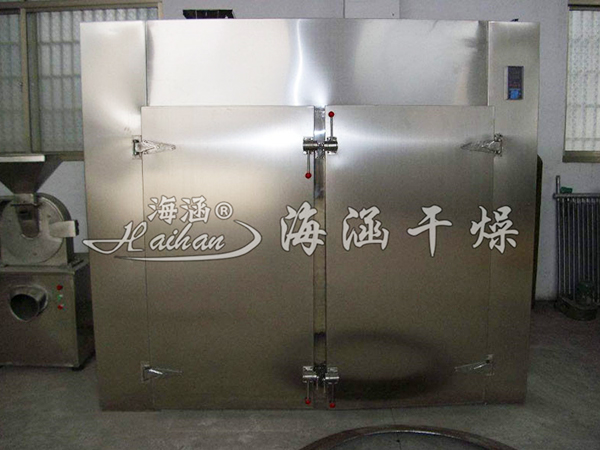

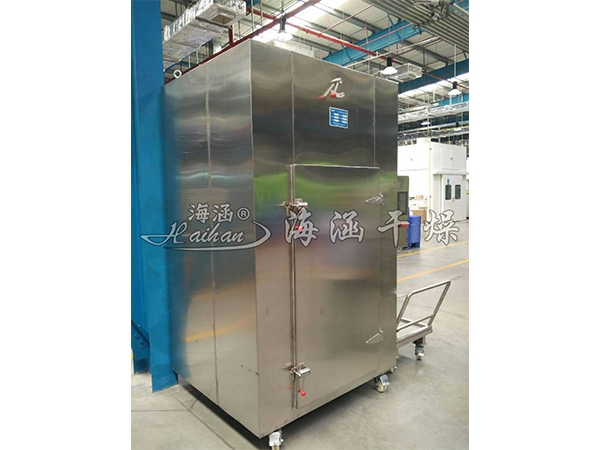

CT, CT-C Series Hot Air Circulation Oven

Category: Drying equipment series

Introduction: Working PrincipleCT-C series hot air circulation oven with low noise and high temperature axial fan and automatic temperature control system, the entire circulatory system is fully closed, so that the thermal efficiency of the oven from the traditiona…

+86-13906119320
Inquire

Working Principle


CT-C series hot air circulation oven with low noise and high temperature axial fan and automatic temperature control system, the entire circulatory system is fully closed, so that the thermal efficiency of the oven from the traditional drying room 3-7% to the current 35-45%, the high thermal efficiency of up to 50%.CT-C hot air circulation oven design success, so that China's hot air circulation oven has reached the level of catching up with foreign countries. It saves a lot of energy for our country and improves the economic benefit of the enterprise. 1990 by the State Pharmaceutical Administration issued the industry standard, the unified model is RXH.

Applicable materials

It is suitable for heating and curing, drying and dewatering of materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. Such as raw materials, raw drugs, Chinese medicine tablets, extracts, powder, granules, punch, water pills, packaging bottles, pigments and dyes, dehydrated vegetables, dried fruits and melons, sausages, plastic resins, electrical components, baking paint and so on.

Equipment features

Most of the hot air circulates in the box, with high thermal efficiency and energy saving. Using the role of forced ventilation, the box is equipped with adjustable wind distribution board, material drying uniformity, the heat source can be steam, hot water, electricity, far-infrared, a wide range of options. The whole machine has low noise and balanced operation. Temperature self-control, easy to install and maintain. Wide range of application, can dry all kinds of materials, is a general drying equipment.
◎Heating heat source has steam, electricity, far-infrared, electricity and steam dual-use, for users to choose;
◎ Using temperature: steam heating 50 ~ 140oC, high up to 150oC;
◎The temperature of using electricity and far infrared is 50~350oC;
◎Automatic control system and computer control system are available for users to choose;
◎ Commonly used steam pressure 0.02-0.8Mpa (0.2-8kg/m2);
◎ Equipped with electric heating, 15KW according to type I, practical 5-8kw/h;
◎Special requirements at the time of ordering instructions;
◎ Non-standard oven price negotiable;
◎ The use of temperature greater than 140oC or less than 60oC, to be specified at the time of ordering;
◎The factory factory drying car, drying disc size unity, can be interchanged;
◎The size of baking tray: 460×640×45(mm).




Scope of application

※ Hot air circulation oven is suitable for heating and curing, drying and dehydration of materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. Such as raw materials, traditional Chinese medicine, Chinese medicine tablets, extracts, powder, granules, punch, water pills, packaging bottles, pigments, dyes, dehydrated vegetables, dried fruits and melons, sausages, plastic resins, electrical components, baking paint and so on.

 Features

※ Most of the hot air circulates in the box, high thermal efficiency, energy saving.
※ Using the principle of forced ventilation, the box is equipped with adjustable air separation board, the material drying evenly. The heat source can be steam, hot water, electricity, far-infrared, a wide range of choices.
※ The whole machine has low noise and smooth operation. Temperature self-control, easy to install and maintain.
※ Wide range of application, can dry a variety of materials, is a general-purpose drying equipment.

Technical Parameters


serial

number

model

number

YY0026

-90

Industry Standard
Model


Technical parameters

replacement (parts)

total

weight

(kg)

evaporation
Area


(㎡)

effective

 volume

(㎡)

Drying quantity

 per time(kg/batch)

Radiator area

(㎡)

Steam consumption(kg/h)

Electric heating power

(kw)

Blower
air volume


(㎡/h)

Fan
Electric power


(kw)

Shape
Dimension


W×D×H

Allocated A3 bakery

 trucks (vehicles)

Baking trays to

be used (only)

Temperature
Auto-control box


1

CT-C-O

RXH-7-C

7.1

1.3

60

15

15

6-9

4510

0.45

1380×1200×2000

1

24

there are

820

2

CT-C-Ⅰ

RXH-14-C

14.1

2.6

120

23

20

15

4510

0.45

2260×1200×2000

2

48

there are

1580

3

CT-C-Ⅱ

RXH-27-C

28.3

4.9

240

48

40

30

9020

0.45×2

2260×2200×2000

4

96

there are

1800

4

CT-C-ⅡA

RXH-27-C

28.3

4.9

240

48

40

30

9020

0.45×2

4280×1200×2270

4

96

there are

1880

5

CT-C-Ⅲ

RXH-41-C

42.4

7.4

360

72

60

45

13530

0.45×3

2260×3200×2000

6

144

there are

2100

6

CT-C-ⅢA

RXH-41-C

42.4

7.4

360

72

60

45

13530

0.45×3

3240×2200×2000

6

144

there are

2210

7

CT-C-Ⅳ

RXH-54-C

56.5

10.3

480

96

80

60

18040

0.45×4

4280×2200×2270

8

192

there are

2800

8

CT-Ⅰ

RXH-14-B

14.1

2.6

120

23

20

15

1414

1.1

2480×1200×2375

2

48

no

1220

9

CT-Ⅱ

RXH-27-B

28.3

4.9

240

48

40

30

5230

1.1

2480×2200×2438

4

96

no

1530

10

CT-Ⅲ

RXH-41-B

42.4

7.4

360

72

60

45

9800

2.2

3430×2200×2620

6

144

no

2110

11

CT-Ⅳ

RXH-54-B

56.5

10.3

480

96

80

60

9800

2.2

4460×2200×2620

8

192

no

2300
