ZB Vacuum Harrow Dryer

Category: Vacuum dryer series

Introduction: Working PrincipleVacuum harrow dryer is a novel horizontal intermittent vacuum drying equipment, wet material evaporation by conduction, with a scraper stirrer to continuously remove the material on the hot surface, and in the container pushed to form…

+86-13906119320

Inquire

Product Info Pictures

Working Principle

Vacuum harrow dryer is a novel horizontal intermittent vacuum drying equipment, wet material evaporation by conduction, with a scraper stirrer to continuously remove the material on the hot surface, and in the container pushed to form a circulating flow, water evaporation by the vacuum pump pumped away.

Equipment features

This machine adopts large-area sandwich heating method, with large heat transfer surface and high thermal efficiency.
The machine is set with stirring, so that the material forms a continuous circulation state in the cylinder, which further improves the uniformity of the material's heating.
The machine is set with stirring, so that it can smoothly carry out the drying of prize, paste and pasty materials.

Scope of application

※ Suitable for slurry, paste and powder materials.
※ Heat-sensitive materials requiring low-temperature drying.
※ Easy to oxidise, easy to explode, strong irritation, highly toxic materials.
※ Materials requiring recovery of organic solvents.

Technical Parameters

Item		Model
Name	单位	ZB-500	ZB-750	ZB-1000	ZB-1500	ZB-2000	ZB-3000	ZB-5000
working volume	L	300	450	600	900	1200	1800	3000
Inner Cylinder Size	㎜	φ600×1500	φ800×1500	φ800×2000	φ1000×2000	φ1000×2600	φ1200×2600	φ1400×3400
stirring speed	rpm	7~6		7~6		7~6
Power consumption	kw	4	5.5	5.5	7.5	11	15	22
Jacket design pressure	Mpa	0.3
pressure in the cylinder	Mpa	-0.09~-0.15

Note: The amount of water evaporated is related to the characteristics of the material and the temperature of the hot air inlet and outlet. With the continuous updating of products, the relevant parameters change without prior notice.

EXCLUSIVE LOGISTICS SUPPORT CUSTOMIZATION

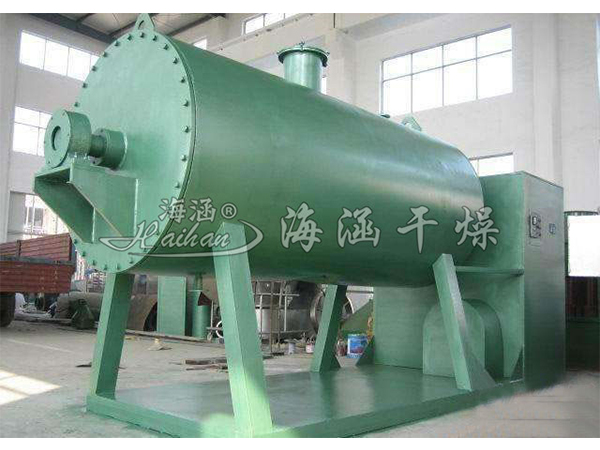

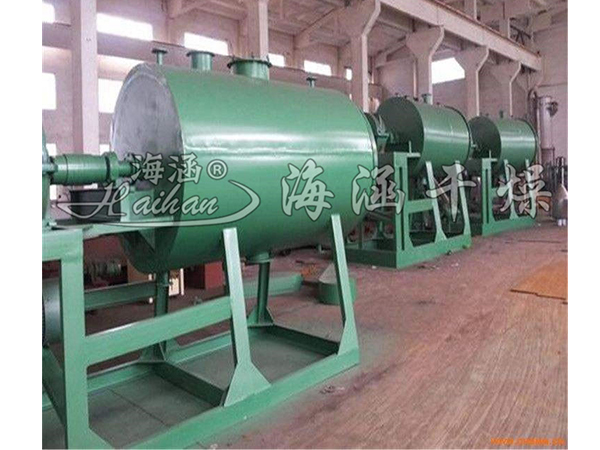

Picture Collection
