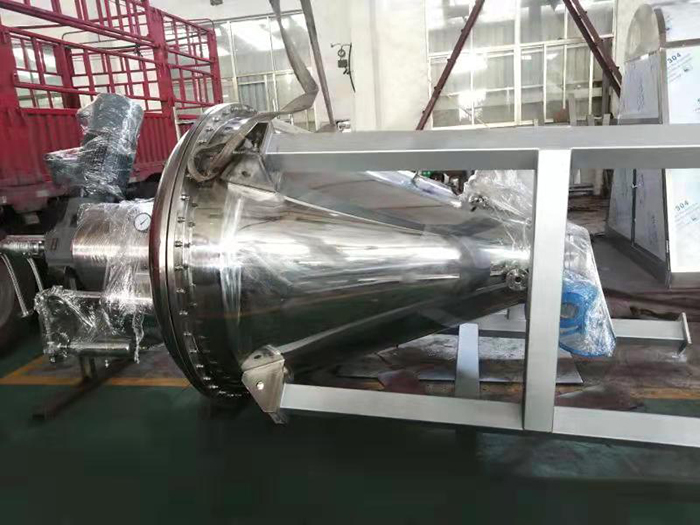

Overview of Single Cone Screw Belt Vacuum Dryer

    Conical Mixing Vacuum Dryer is a multifunctional dryer integrating mixing and vacuum drying. The material is heated and stirred in the tank, the moisture evaporated by heating is pumped out by vacuum pump, and the dried material is discharged from the bottom outlet of the cone. Conical dryer has high drying efficiency, large drying contact surface, material discharge is fast and . The drying efficiency is high, the drying contact surface is large, the material discharge is both fast and . It can replace the mixing and drying equipment at the same time (such as: double cone dryer, rake dryer, double cone mixer and twin-screw mixer, etc.) in the same equipment to complete the mixing, drying, discharging the whole process. Can also be cooled, anti-bacteria, reaction and other operations. It can be widely used in pharmaceutical, chemical, pesticide, food and other industries. It is the equipment for mixing and drying, which can realise the whole closed and continuous operation of the whole process.  



      Conical screw belt vacuum dryer cylinder body without any transmission mechanism, fundamentally prevent the material contamination due to lubrication leakage, reliable and stable operation, especially suitable for high hygiene requirements of the powder, granule mixing; but also for viscous fluid or thick, wet, paste-based material mixing mixing.



      The mixer of this machine consists of mixing spindle and two screw belts and spiral blades which match the surface of the inner wall of the cylinder. When rotating, the screw belt and spiral blades will elevate the material from the bottom up along the cylinder wall, and at the same time, due to the different speeds of the points on the surface of the screw belt during operation, the material produces irregular convection, shear, mixing, diffusion, forming a full range of three-dimensional movement. The centre of the mixing shaft is the spiral blade, the operation will rely on the centre of the material to enhance, throw out, be thrown out of a part of the material into the screw belt, and the material thrown out of the screw belt is absorbed into the spiral envelope of the spiral blade body and enhancement. So the cycle is repeated, so that the material in a short time to achieve uniform mixing.
