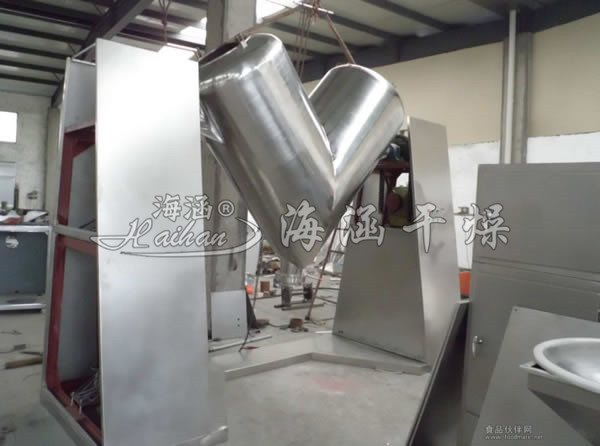

Characteristics and working principle of V-type mixer

V-type mixer features:

 1, the use of gravity diffusion mixing principle, reducing the pressure of the material, there is no shear crushing phenomenon.

 2、The barrel of V-type mixer is made of high-quality stainless steel, polished inside and outside wall, no contaminated material when mixing, power saving, easy to clean.

 3、Discharge using stainless steel butterfly valve, no dust leakage and flying.

 4、Large mixer adopts vacuum charging system, which can improve mixing efficiency and working environment.

 5、It is especially suitable for mixing materials with similar particle size and apparent density.

 6、It can be on the shaft of V-type mixer, pressurised mixing blades on the V-type mixer to speed up the mixing speed, and it can also be used to mix easily condensed materials.



The working principle of V-type mixer:

  V-type mixer cylinder driven by the drive shaft around the centre of the rotary axis for rotary motion, in which the material is also with the V-shaped cylinder for gravity diffusion movement, when the joint of the V-shaped cylinder (bottom) in the rotating position, the material is gathered at the end. As the joint of the V-shaped cylinder is in the upper position, the material gathered at the bottom is diverted into the two slanting cylinders, so that the material from each slanting cylinder passes through the joint opening and then through the other slanting cylinder. Due to the continuous rotation of the cylinder, the position is constantly changing, the V-shaped cylinder material repeatedly dislocation, movement, diffusion, to achieve uniform mixing.
