Category: Vacuum dryer series
Introduction: Working PrincipleLow-temperature pulse vacuum dryer is a kind of vacuum box-type drying device, belonging to the static vacuum class drying equipment, is working under negative pressure conditions, can be widely used in various industries of material …

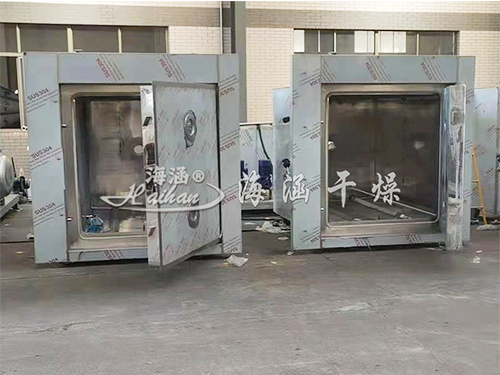

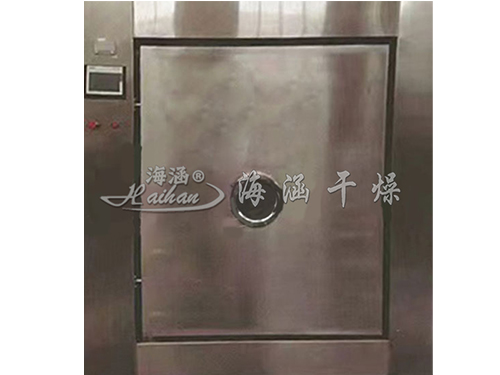

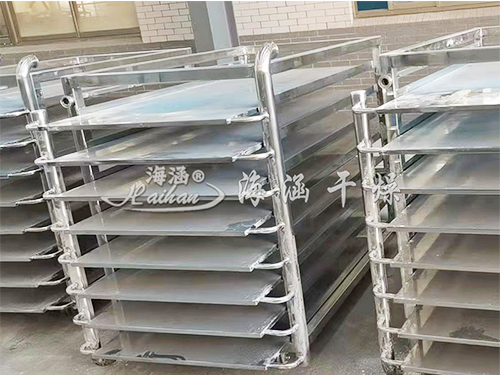

Low-temperature pulse vacuum dryer is a kind of vacuum box-type drying device, belonging to the static vacuum class drying equipment, is working under negative pressure conditions, can be widely used in various industries of material drying, especially suitable for heat-sensitive materials or viscous materials, oxygen-containing working condition of the material drying is relatively harsh. The material is loaded in the drying disc and placed on the plate layer inside the box, so that a vacuum is formed inside the working chamber, which reduces the boiling point of water and speeds up the drying speed. Adopting (low temperature) hot water as the exchange medium, adopting the principle of ‘high vacuum’ laminar flow drying, and adopting the pricked bubble technology, it solves the bottleneck of easy blistering and overflowing, easy coking and carbonisation, easy oxidation and degradation of materials, long drying cycle, etc., and it is a kind of high efficiency and energy-saving drying method with low temperature. At the same time the box can be completed online cleaning or immersion cleaning function, is currently the most advanced, most energy-saving, most efficient one of the equipment.
Name\Specifications |
MZG-1 |
MZG-2 | MZG-3 | MZG-4 | MZG-5 |
Overall dimensions(mm) |
2015x1765x2140 |
2015x2265x2140 |
2015x2265x2370 |
3400x2300x2140 |
3400x2300x2370 |
Inner Cavity Size(mm) |
1250x1450x1450 |
1250x1950x1450 |
1250x1950x1670 |
2600x1950x1450 |
2600x1950x1670 |
Baking tray size(mm) |
565x400x50 |
565x400x50 |
565x400x50 | 565x400x50 | 565x400x50 |
Number of baking trays (only) |
32 |
48 | 72 |
96 |
114 |
Rated capacity, kg/tank Specific gravity of material1.2-1.3 |
48-128 (wet ingredients (in a cooking recipe)) |
72-192 (wet ingredients (in a cooking recipe)) |
108-288 (wet ingredients (in a cooking recipe)) |
144-384 (wet ingredients (in a cooking recipe)) |
216-576 (wet ingredients (in a cooking recipe)) |
Layer Size(mm) |
850x1150x20 |
850x1720x20 |
850x1720x20 |
850x1720x20 |
850x1720x20 |
Number of Layers (Blocks) | 8 | 8 | 12 |
16 |
24 |
Number of internal vehicles (vehicles) | 1 | 1 | 1 | 2 | 2 |
Tool pick-ups (vehicles) | 1 | 1 | 1 | 2 | 2 |
Insulation thickness(mm) |
aluminosilicate/100 |
aluminosilicate/100 | aluminosilicate/100 | aluminosilicate/100 | aluminosilicate/100 |
Spiny bubble system (group) | 1 | 1 | 1 | 2 | 2 |
total power(kw) |
9.57 |
12.37 |
16.57 |
23.37 |
30.77 |
Weight(kg) |
3500 |
4650 |
5800 |
6700 |
7200 |
Jacket steam consumption(kg/hr) |
45 |
50 |
65 |
90 |
110 |
CIP purified water usage(m3/hr) |
1.2 |
1.3 |
2.0 |
3.0 | 3.0 |
Water ring pump consumption(m3/hr) |
0.25 |
0.35 |
0.4 |
0.63 |
0.87 |
compressed air(barg) |
5-8 |
5-8 |
5-8 |
5-8 |
5-8 |
hot water tank(L) |
300L |
300L | 400L |
500L |
500L |
vacuum system(kpa) |
-99.8 |
-99.8 |
-99.8 |
-99.8 | -99.8 |
