Vacuum dryer series

Products

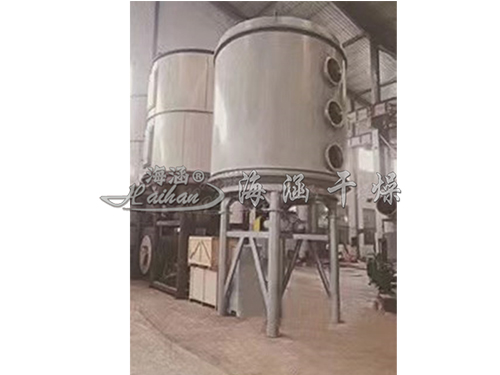

ZPLG Series Vacuum Disc Dryer

Category: Vacuum dryer series

Introduction: Working PrincipleDrying Pyrolysis Calcination Cooling Reaction SublimationEquipment features(A) Material transfer systemSpindle speed; 1~10 rpm, electromagnetic or frequency conversion infinitely adjustable.Rake arm: 2~8 rake arms fixed on the main sh…

+86-13906119320
Inquire

Working Principle

Drying Pyrolysis Calcination Cooling Reaction Sublimation

Equipment features

(A) Material transfer system

Spindle speed; 1~10 rpm, electromagnetic or frequency conversion infinitely adjustable.

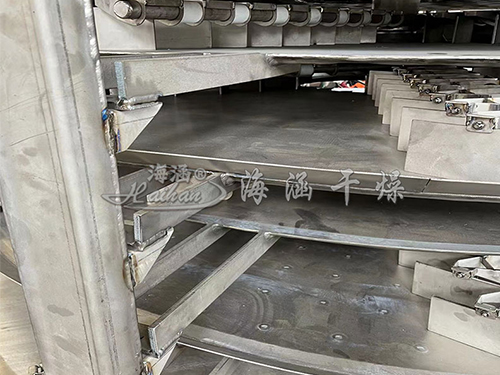

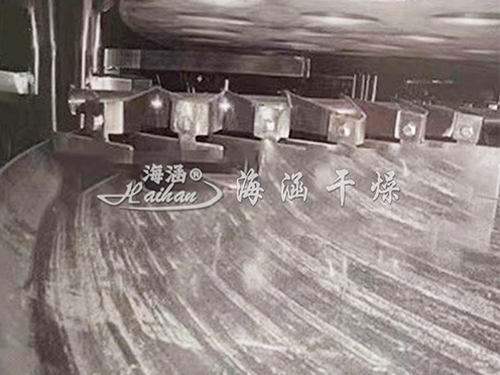

Rake arm: 2~8 rake arms fixed on the main shaft on each layer of drying disc.

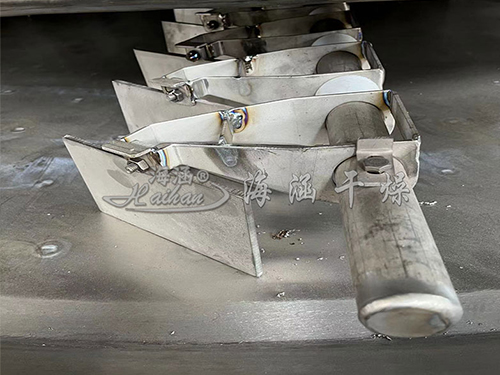

Rake leaves: na sis on the rake arm, can be arbitrary disc surface up and down to maintain contact, there are a variety of forms.

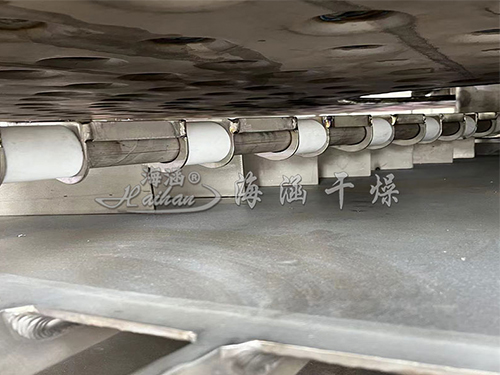

Grinding roll: easy to agglomerate and need to crush the material, in the release position with the addition of grinding roll, can strengthen the heat transfer and drying process.

(ii) shell

There are three forms of atmospheric pressure, closed, vacuum

Normal pressure type: cylinder or octagonal column type, there are two kinds of structures: whole and open. Heating medium import and export pipeline can be in the shell, can also be outside the shell.

Closed: cylindrical shell, can withstand 5kpa internal pressure, heating medium import and export pipeline can be in the shell, can also be outside the shell.

Vacuum type: cylindrical shell, design pressure of 0.1Mpa, heating medium import and export pipeline in the shell.

(D) air heater

Generally used in the case of larger evaporation to enhance the drying efficiency.

Scope of application


Drying Pyrolysis Calcination Cooling Reaction Sublimation

(A) organic chemicals

(B) inorganic chemical products

(C) medicine, food

(D) feed, fertiliser


Technical parameters


norm/Type Diameter(mm) High(mm) Area of dry(m2) Power(kw)
1200/4 1850 2608 3.3 1.1
1200/6 3028 4.9
1200/8 3448 6.6 1.5
1200/10 3868 8.2
1200/12 4288 9.9 2.2
1500/6 2100 3022 8.0
1500/8 3442 10.7
1500/10 3862 13.4
1500/12 4282 16.1 3
1500/14 4702 18.8
1500/16 5122 21.5
2200/6 2900 3262 18.5
2200/8 3682 24.6
2200/10 4102 30.8 4
2200/12 4522 36.9
2200/14 4942 43.1 5.5
2200/16 5362 49.3
2200/18 5782 55.4 7.5
2200/20 6202 61.6
2200/22 6622 67.7 11
2200/24 7042 73.9
2200/26 7462 80
2500/6 3150 3319 26.3 4
2500/8 3739 35
2500/10 4159 43.8 5.5
2500/12 4579 52.5
2500/14 4999 61.3 7.5
2500/16 5419 70
2500/18 5839 78.8 11
2500/20 6259 87.5
2500/22 6679 96.3
2500/24 7099 105 13
2500/26 7519 113.8
3000/8 3800 4050 48 11
3000/10 4650 60
3000/12 5250 72
3000/14 5850 84
3000/16 6450 96
3000/18 7050 108 13
3000/20 7650 120
3000/22 8250 132
3000/24 8850 144
3000/26 9450 156 15
3000/28 10050 168
3000/30 10650 180
