Working Principle

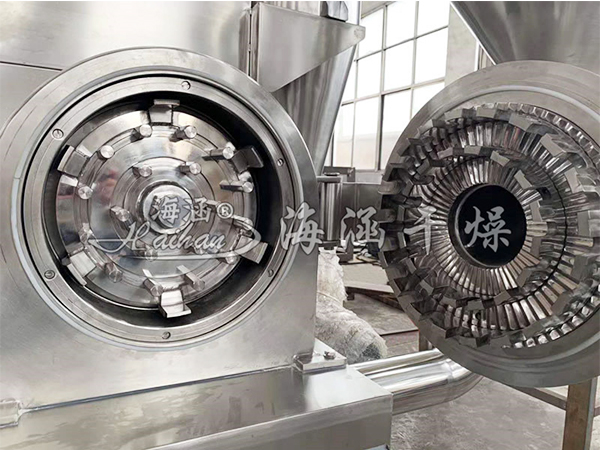

Crushing room inside is a multi-tooth blade, the outer ring has a reverse toothed tooth ring and power corresponding to, when the material through the hopper, down the mouth into the crushing room, by the power in the drive source under the action of high-speed operation, the material in the fixed knife for shear and impact to achieve the purpose of long-fibre crushing. In the back of the crushing room is the screening part, crushing room materials in the crushing process due to the action of the induced draft fan, the crushed materials to screen the screening movement for screening, fine materials can be with the airflow through the sieve, the coarse material is graded by the bracket driven back to the crushing room to be crushed again. After screening the material through the pipe into the cyclone separation for collection, the remaining dust into the bag filter for the second collection.

Equipment features

WFS series crushing unit is purely new design of new products, the machine set micro-mill, high-efficiency crusher, universal crusher of the advantages of the combination of novel herbal medicine crusher, compact internal structure, easy to disassemble, easy to install low, low energy consumption, high efficiency, beautiful and generous in appearance is the ideal new herbal medicine crushing products.

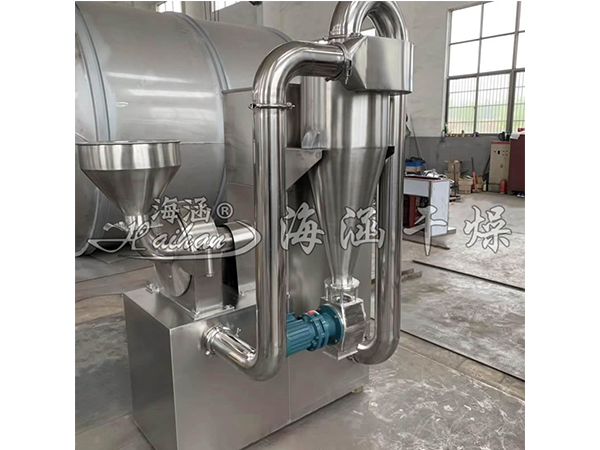

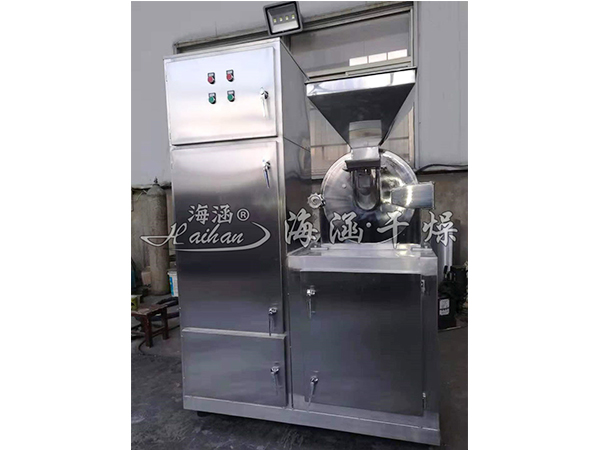

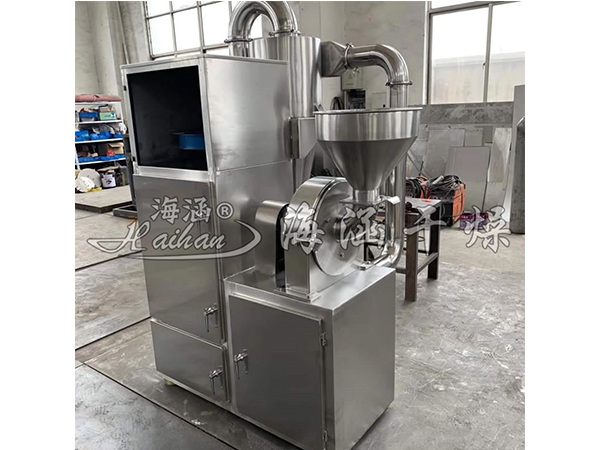

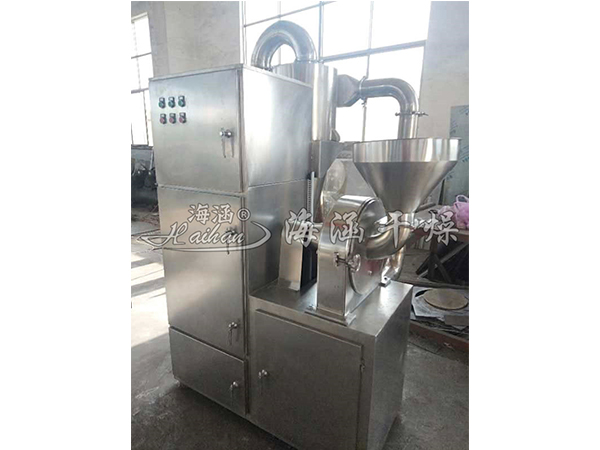

WFS series crusher main structure: by the feeding part of the crushing system, sorting system, dust collection and induced draft system group, drive the host device has a crushing box, feeding hopper, moving knife, toothed circle grading and screening components, collection of materials by the pipeline, cyclone separator, off the barrel or off the fan composition, dust bag, suction fan and so on.

Technical parameters
