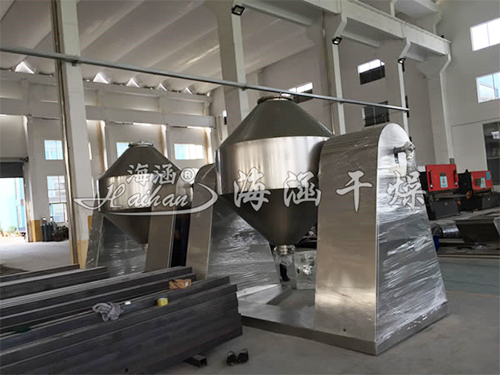

SZH series double cone mixer will powder or granular materials through vacuum conveying or artificial feeding into the double cone container, with the continuous rotation of the capacity, the material in the container for complex impact movement, to achieve uniform mixing.

Equipment features

◎ This machine is mainly composed of double cone mixing barrel, frame, transmission system, electrical system and other parts, it adopts gravity mixing, the material is constantly rolling in the barrel, generally after about 15 minutes time mixing table, so that two or more powder, granular materials are fully mixed evenly.

◎ Mixing cylinder wall inside and outside the body by precision polishing treatment, the surface is smooth, flat, ’, easy to clean.

◎The transmission system works without shaking, no noise, easy maintenance, electrical control is precise and sensitive, the use of stainless steel butterfly valve discharge, no leakage, no dust flying.

◎ The machine design’, beautiful appearance, wide range of uses, is the ideal equipment for mixing materials.

◎ It is energy-saving, easy to operate, low labour intensity and high working efficiency.

This machine is suitable for mixing powdery and granular materials in pharmaceutical, chemical, food, building materials and other industries.

Technical Parameters

Model	Total Volume（m3）	Productive capacity （kg/tier）	Mixing time(min)	Revolution of cylinder(rpm)	Power(kw)	Overall dimenesion(mm)	Rotation height (mm)	Weight(mm)
180	0.18	40	4—8	12	1.1	1400x800x1850	1850	280
300	0.3	60	6—10	12	1.1	1685x800x1850	1850	310
500	0.5	100	6—10	12	2.2	1910x800x1940	1950	550
1000	1	200	6—10	12	4	2765x1500x2370	2460	810
1500	1.5	300	6—10	12	4	2960x1500x2480	2540	980
2000	2	400	6—10	12	7.5	3160x1900x3500	3590	1500
2500	2.5	500	6—10	12	7.5	3386x1900x3560	3650	2150
3000	3	600	6—10	7.8	7.5	4450x2200x3600	3700	2500
4000	4	800	6—10	7.8	11	4750x2500x3680	3730	3200

Note: For the material with great change of volume before and after drying, the loading coefficient can be increased or reduced appropriately, and the maximum loading volume can not touch the bottom of the vacuum tube.
The motor can be equipped with speed control motor according to the user's requirements, and the speed is 0-6rpm; the above technical parameters of the material specific gravity is calculated according to 0.6g/c m3, such as more than that, need to be put forward at the time of ordering; the user, such as the need for pressure vessel certificates, need to be put forward at the time of ordering; such as the inner lining materials using glass-lined, need to be put forward at the time of ordering; the material, such as flammable and explosive, need to be explicitly proposed at the time of ordering, or else prohibited from use.
