After the air is heated and purified, it is introduced from the lower part by the induced draft fan and passes through the hole mesh plate of the hopper. In the working chamber, fluidisation is formed by stirring and negative pressure, water evaporates quickly and is taken away with the exhaust, and the material is dried quickly.

Equipment features

◎ Fluidised bed is round structure to avoid dead corner.

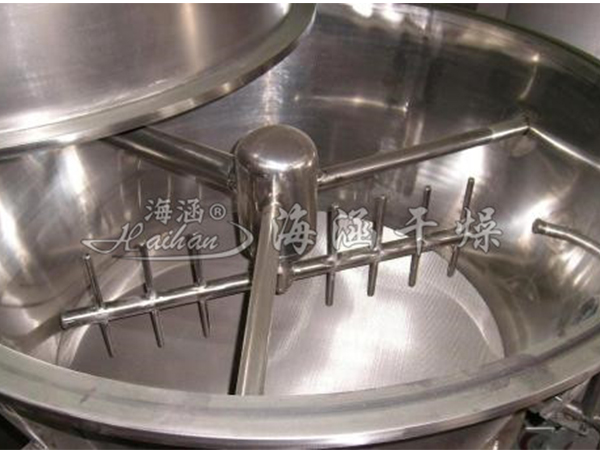

◎The hopper is set with stirring to avoid the wet material from clustering and forming gutter flow when drying.
◎Turning and tilting granule unloading, convenient, rapid and thorough, can also be designed according to the requirements of the automatic feeding and discharging system.
Sealed negative pressure operation, the airflow is filtered. Easy to operate and clean.
The drying speed is fast, the temperature is uniform, the drying time of each batch is generally 20-30 minutes, depending on the material.

Scope of application

◎ Mechanism screw extruded particles, swing particles, wet high-speed mixing granules.
◎ Pharmaceutical, food, feed, chemical and other fields of wet particles and powder materials drying.
Large particles, small lumps, sticky lumps and granular materials.
◎ Konjac and other materials with volume change when drying.

Technical Parameters
