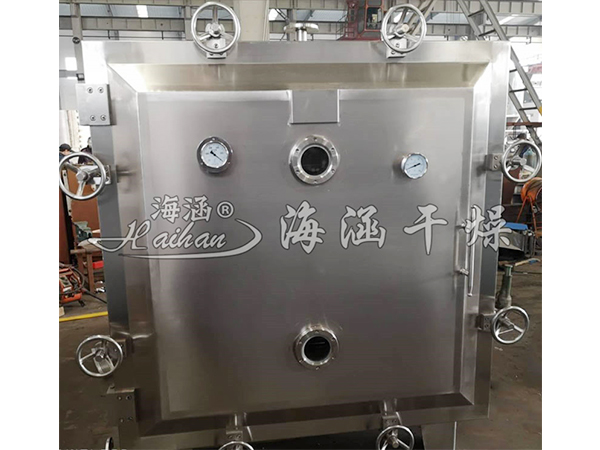

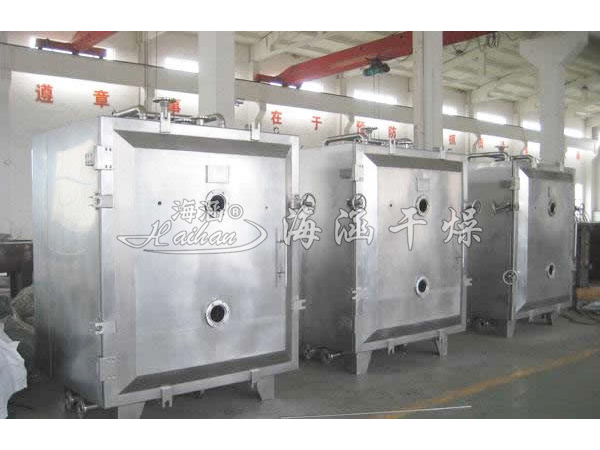

Square Vacuum Dryer

Category: Vacuum dryer series

Introduction: Working PrinciplePure water has its maximum rate of vaporisation in the boiling state. Under normal conditions, pure water starts to boil at about 100C. And under vacuum conditions, due to the partial pressure of water vapour in the system, much lower…

+86-13906119320

Inquire

Product Info Pictures

Working Principle

Pure water has its maximum rate of vaporisation in the boiling state. Under normal conditions, pure water starts to boil at about 100°C. And under vacuum conditions, due to the partial pressure of water vapour in the system, much lower than the partial pressure of water vapour on the surface of the material, the boiling point of water is lower than 100 ℃. For example, when the surface drops to -0.07MPa, water starts to boil at 70℃. Therefore, despite the lower operating temperature, the dryer still has a large drying capacity.

Equipment features

※ Higher drying rate can be obtained at lower temperature and heat is fully utilised.
Suitable for low-temperature drying, drying of heat-sensitive materials and drying of oxidised materials.
It is suitable for low temperature drying, heat-sensitive materials, and materials that are afraid of oxidisation.
It can be sterilised before drying, and there is no impurity mixed in the drying process.
The dryer is a static vacuum dryer, so the shape of the dried material will not be damaged.
The dryer is a batch production equipment, which can adjust the process at any time.
※ The inner top is arch-shaped structure, which can effectively avoid the phenomenon of condensation water back-drop.
※ Adopting four-point one vacuum structure to ensure the uniformity of material drying.

Scope of application

It is suitable for drying heat-sensitive materials in pharmaceutical, chemical, food, electronics, traditional Chinese medicine and other industries.

Technical Parameter

Parameters/Specifications	FZG-5	FZG-10	FZG-15	FZG-20
Inside Dimension of Drying Oven mm	1150×850×1210	1500×1060×1220	1500×1400×1220	1500×1800×1220
Outer dimensions of the drying oven mm	1320×1270×1780	1924×1720×1513	1513×1924×2060	1924×2500×1513

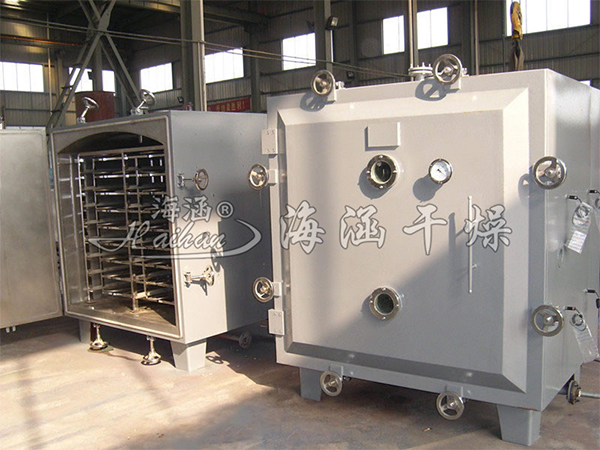

Number of shelves	6	5	8	12
interstorey distance mm	122	122	122	122
Baking tray size mm	460×640×45	460×640×45	640×460×45	640×460×45
Number of baking trays	12	20	32	48
Inside the drying rack tube Used pressure Mpa	≤0.784	≤0.784	≤0.784	≤0.784
Use temperature of drying rack℃	35~150	35~150	35~150	35~150
No load in the box Vacuum degree Mpa	-0.1	-0.1	-0.1	-0.1
Vapourisation rate of water Kg/m2h at -0.1Mpa, heating temperature 110°C	7.2	7.2	7.2	7.2
Drying box weight kg	1100	1400	2100	3200
