Special Mesh Belt Dryer for Garlic, Chilli, Red Date

Special Mesh Belt Dryer for Garlic, Chilli, Red Date

This machine is through the flow of continuous drying equipment, for the permeability of the better flake, strip, granular material drying, for dehydrated vegetables, traditional Chinese medicine tablets and other categories of high water content, and the temperature does not allow high materials is particularly suitable; the series of dryers have the advantages of fast drying speed, high evaporation intensity, good product quality, for dehydration of filter cake paste materials, need to be granulated or made into a rod can also be dried.

Performance characteristics

◎ The air volume, heating temperature, material residence time and feeding speed can be adjusted to obtain good drying effect.
Flexible equipment configuration, can use the mesh belt washing system and material cooling system.
Most of the air is recycled to save energy.
Unique air distribution device makes the hot air distribution more uniform and ensures the consistency of product quality.
The heat source can be steam, thermal oil, electricity or coal-fired (oil) hot air furnace.

Working Principle

The material is evenly spread on the mesh belt by the feeder, and the mesh belt generally adopts 12-60 mesh stainless steel wire mesh, which is dragged by the transmission device to move in the dryer. The dryer consists of a number of units, each unit of hot air independent circulation, part of the exhaust from the special exhaust fan discharge, exhaust control by the control valve, hot air from the bottom to the top or from the top to the bottom through the mesh belt full of materials to complete the process of heat and mass transfer, take away the material moisture. The mesh belt moves slowly, the running speed can be adjusted freely according to the temperature of the material, and the dried product falls into the collector continuously. The upper and lower circulating units can be equipped flexibly according to the needs of users, and the number of units can also be selected according to the needs.

Applicable materials

Dehydrated vegetables, granular feed, monosodium glutamate, coconut, organic pigments, synthetic rubber, propylene fibre, drugs, medicinal herbs, small wood products, plastic products, electronic devices, aging, curing and so on.

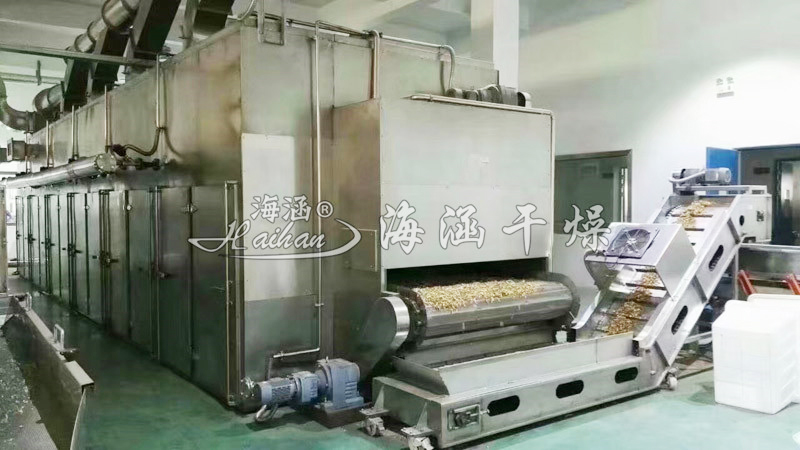

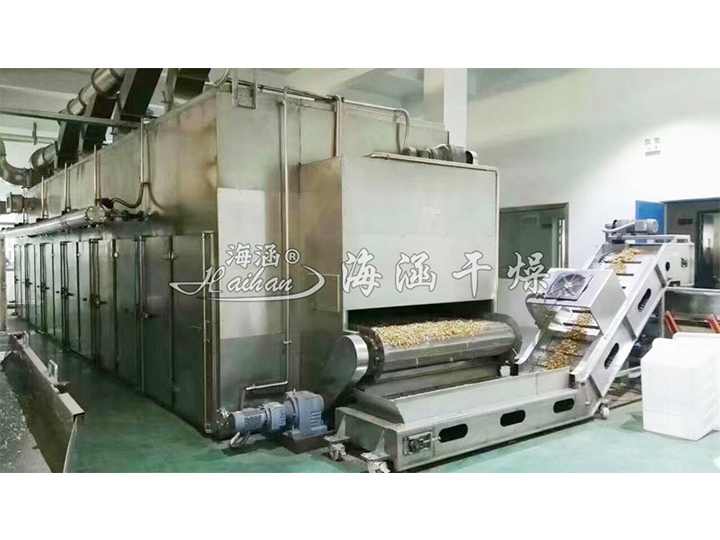

Project picture
