Category: Auxiliary equipment series
Introduction: OutlinedTJG Series Fixed Lift Charger consists of two parts, i.e. hoist and base. The elevator consists of a frame, a hydraulic lifting system and a material door turning mechanism. When working, firstly, the material door of the elevator and the barr…
+86-13906119320

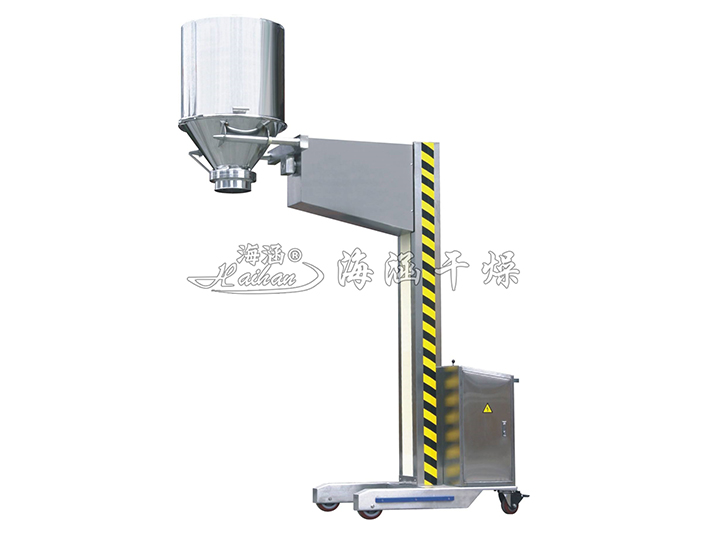

TJG Series Fixed Lift Charger consists of two parts, i.e. hoist and base. The elevator consists of a frame, a hydraulic lifting system and a material door turning mechanism. When working, firstly, the material door of the elevator and the barrel are fastened together, start the lifting operation lever, the material door and the barrel will rise together, start the overturning operation lever, the barrel can be turned 180 degrees, and the bottom barrel will be upward posture and move to the required position, using the material door on the material butterfly valve, the material can be easily added to the required process equipment.

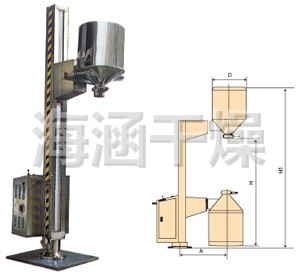

| Model Specification\Parameter | H | A | D | H1 |
| TJG-50 | 2050 | 650 | Φ485 | 2900 |
| TJG-100 | 2050 | 750 | Φ590 | 2900 |

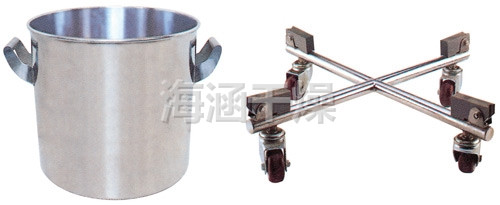

| name | loading（kg） | Specification (barrel diameter x height) | wall thickness（mm） |
| drum | 50 | Φ485×460 | 0.8 |
| 100 | Φ590×550 | 0.8 | |
| Trucks for drums | 50-100 |
Φ500×600 |
|
