Equipment features

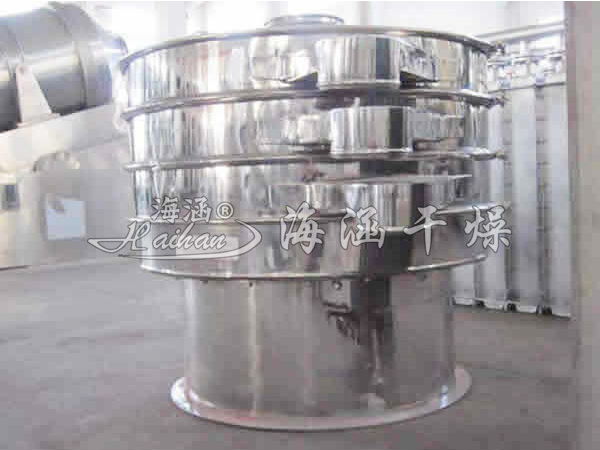

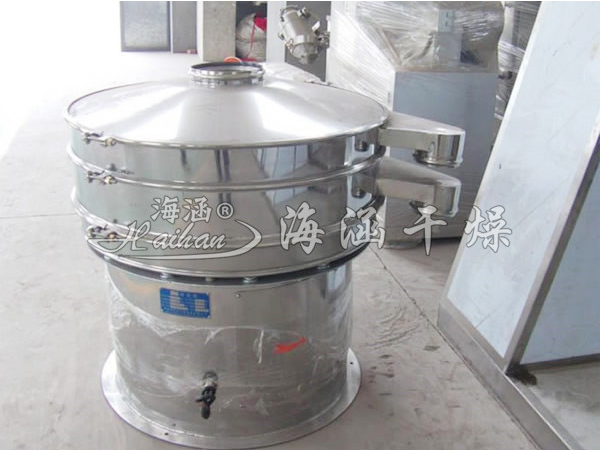

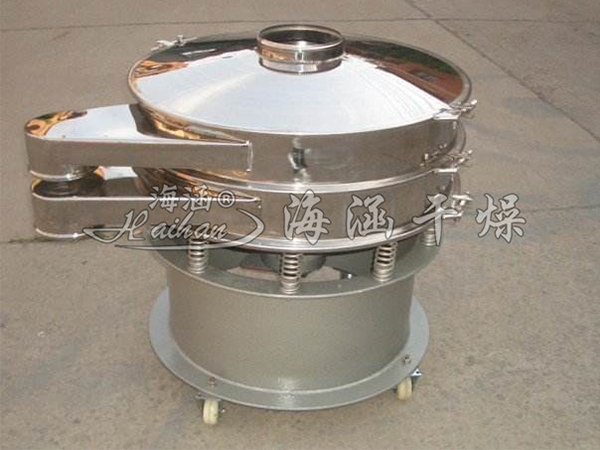

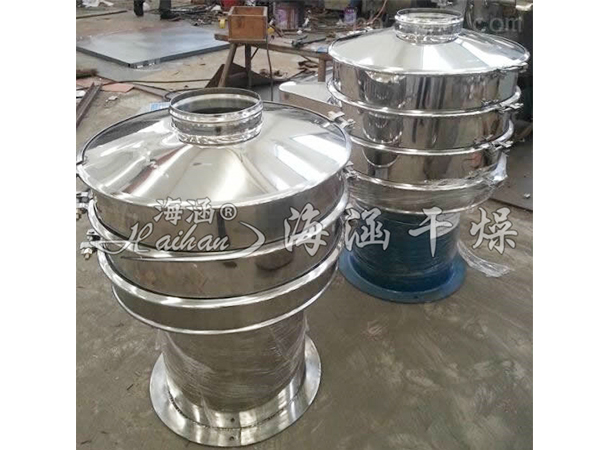

The machine consists of hopper, oscillation chamber, coupling and motor. The oscillation chamber is composed of eccentric wheel, rubber software, main shaft, bearing and so on. The adjustable eccentric weight hammer is driven by motor to reach the centre line of main shaft, which generates centrifugal force under unbalanced condition, so that the material strength changes to form orbital vortex inside the sieve. The amplitude size of the weight adjuster should be corrected according to different materials and screens.
The whole machine has compact structure, small volume, no dust, low noise, high output, low energy consumption, easy to move and maintain.

Scope of application

ZS series stratified sieve is suitable for running operation, it is the ideal equipment for continuous discharging of large and small particles in unequal proportion through the sieve. Mixer

Technical Parameters

model number	production capacity (kg/h)	Number of sieves mesh	electric power  (measured in watts) (kw)	Spindle speed (r/min)	Overall dimensions (mm)	net weight (kg)
ZS-365	60-500	12-200	0.55	1380	540×540×1060	100
ZS-515	100-1300	12-200	0.75	1370	710×710×1290	180
ZS-650	180-2000	12-200	1.50	1370	880×880×1350	250
