Working Principle

This series of pulse cloth cartridge dust filter has the features of high dust removal efficiency, large handling air volume, stable performance, convenient operation and maintenance, good use effect, not easy to accumulate powder, wide range of applications, etc. It is widely used in the ventilation and dust removal and dust recycling in the industries of grain and foodstuffs, feedstuffs, metallurgy and chemical industry, building materials, pharmaceuticals and so on.

Equipment features

In addition to the features of high dust removal efficiency, large handling air volume, stable performance, convenient operation and maintenance, it also has the features of better use than Type I, not easy to accumulate powder, and wide range of applications.

Scope of application

It is suitable for ventilation and dust removal and dust recovery in grain and food, feed, metallurgy and chemical industry, building materials, medicine and other industries.

Technical parameter

parametric	型号
	MF48	MF60	MF72	MF84	MF96	MF108	MF120
filtration area（m2）	36.2	45.2	54.3	63.3	72.4	81.4	90.5
Number of filter bags (only)	48	60	72	84	96	108	120
Filter air volume(m3/h)	6510-8680	8130-10840	9770-13000	11400-1520	13000-17370	14650-19530	16290-21700
Number of solenoid valves (only)	8	10	12	14	16	18	20
propulsion(kw)	1.1	1.1	1.1	1.1	1.5	2.2	2.2

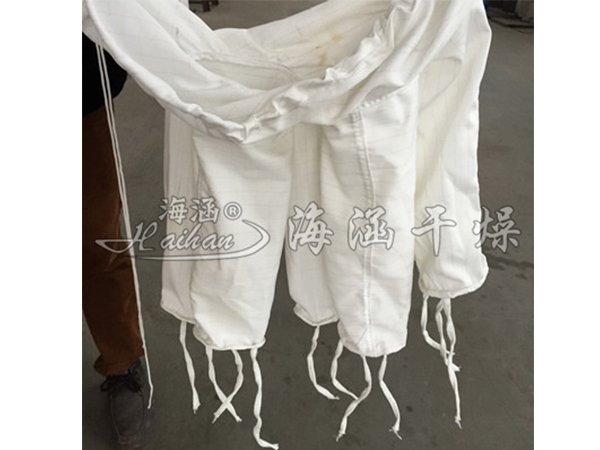

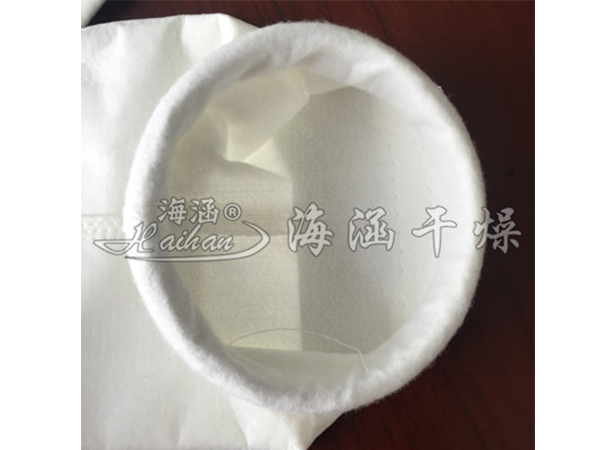

Filter bag specifications(mm)	120×2000
Filter air velocity(m/min)	3-4
air leakage rate(%)	≤5
blowout pressure(MPa)	＞0.4-0.6
Equipment resistance(Pa)	＜1200
Dust removal efficiency(%)	≥99.9（根据粉尘特性选择适应的滤料）

Technical specification

parametric	型号
	MF48	MF60	MF72	MF84	MF96	MF108	MF120
A	3530	3530	3530	3530	3530	3530	3530
B	3287	3287	3287	3287	3287	3287	3287
C	2552	2552	2552	2552	2552	2552	2552
D	1160	2260	1160	1160	1160	1160	1160
E	1350	1650	1950	2250	1350	2850	3150
F	1350	1350	1350	1350	1350	1350	1350
G	635	635	635	635	635	635	635
H	325	475	625	775	925	1075	1225
I	1586	1586	1586	1586	1586	1586	1586
J	790	790	790	790	850	850	850
K	824	824	824	824	824	824	824
M×N	400×500	500×500	600×500	700×600	700×600	800×600	800×600
P×Q	432×530	530×530	630×530	728×630	728×630	832×630	832×630
R×S	1050×1050	1350×1050	1650×1050	1950×1050	2250×1050	2250×1050	2850×1050
