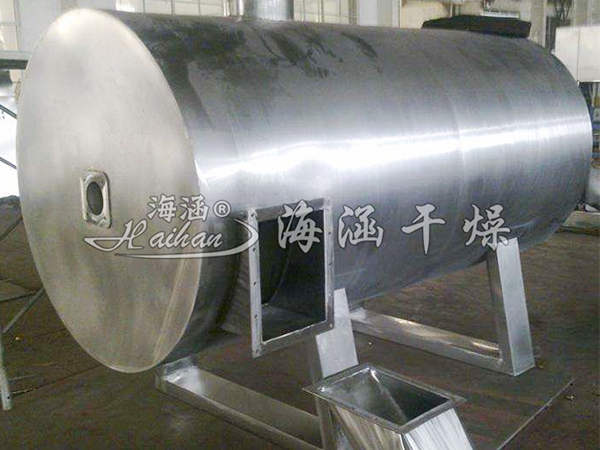

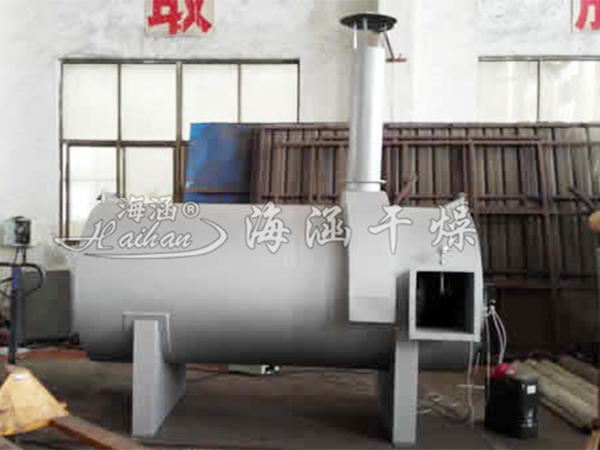

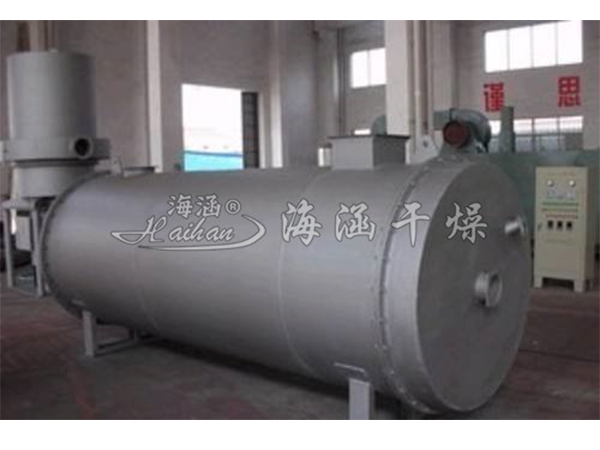

RLY Series Oil-fired Hot Air Furnace

Category: Auxiliary equipment series

Introduction: Working PrincipleThe fuel is burned through the burner to produce high temperature gas. And with the help of the hot air furnace with strengthened heat exchange measures will be high temperature gas heat conduction to the heated air, high temperature …

+86-13906119320

Inquire

Product Info Pictures

Working Principle

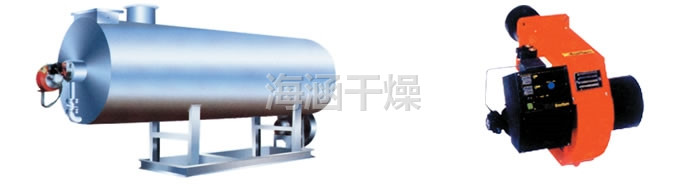

The fuel is burned through the burner to produce high temperature gas. And with the help of the hot air furnace with strengthened heat exchange measures will be high temperature gas heat conduction to the heated air, high temperature gas by the heat distribution after the temperature is lowered to 250 ℃ and discharged into the atmosphere. The air to be heated is strongly fed into the hot air furnace through the optional blower, and the temperature rises to the rated value after absorbing heat and is sent out from the outlet of the hot air. When the temperature of the hot air reaches the upper limit of the rated temperature, the burner will automatically stop burning or automatically turn to a small flame combustion, and when the temperature of the hot air is lowered to the lower limit of the rated temperature, the burner will be re-lighting and running again or will turn to a large flame combustion, and the speed of warming up can be realised by adjusting the openness of the air inlet valve.

Technical parameters

model number	Burner Model	fuel quantity kg/h	heat supply 104kcal/h	L×W×Hmm	heat vent L×Wmm	gross weight kg
RLY1	RIELLO.G3/DL3FS	1.3-1.6	1	1200×1200×1600	Φ200	460
RLY4	RIELLO.G10/DL10FS	5-6.5	4	1700×1300×1600	Φ250	850
RLY10	RIELLO.G20/DL23FS	13-16	10	2300×1568×1870	Φ300	2200
RLY20	RIELLO 1G/DL34FS	26-32	20	2800×1568×1870	Φ400	2670
RLY30	RL50/DL55FT	39-48	30	3400×1568×1870	Φ450	3060
RLY40	RL70/DL75FT	52-64	40	4440×1768×2070	Φ550	5600
RLY60	RL100/DL100FT	78-96	60	5140×1868×2070	Φ600	8460
RLY100	PRESS 4G/DL 120FT	130-140	100	6440×2480×2300	550×600	12800
RLY160	P300/DL250FT	200-270	160	7470×2920×3480	750×900	15780
RLY200	P300/DL300FT	260-300	200	8175×2920×3480	750×900	18500
RLY360	G1510	480-620	360	9300×2920×3480		21000
