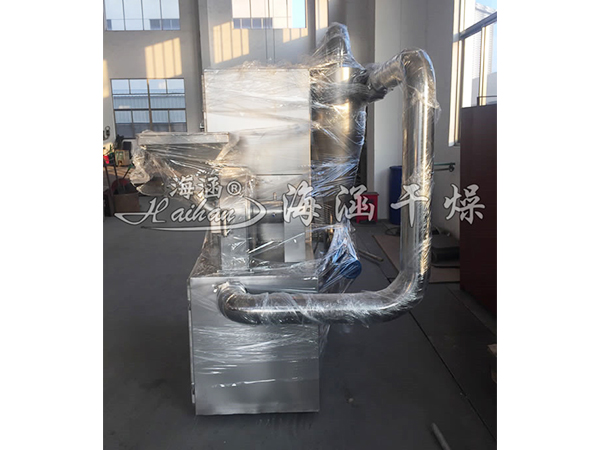

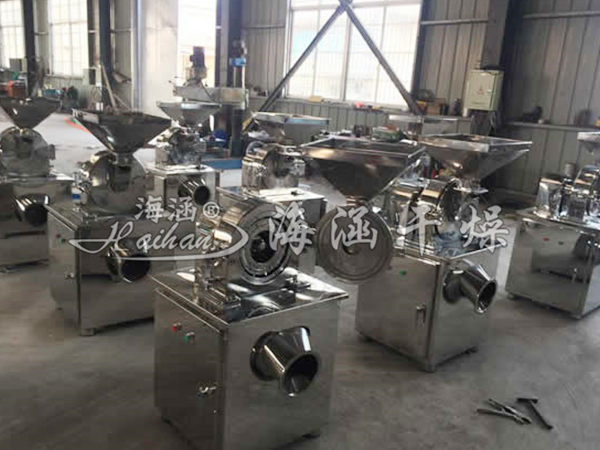

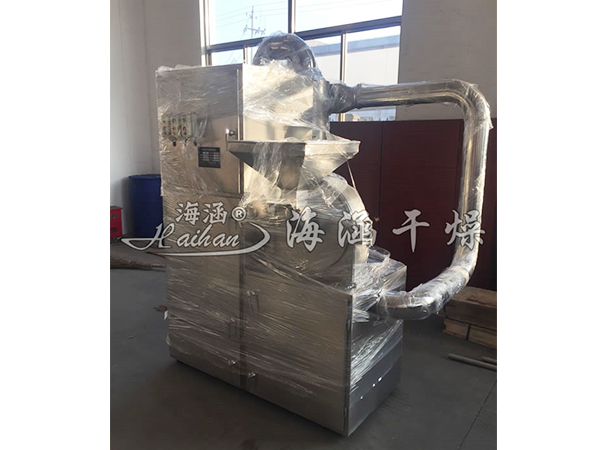

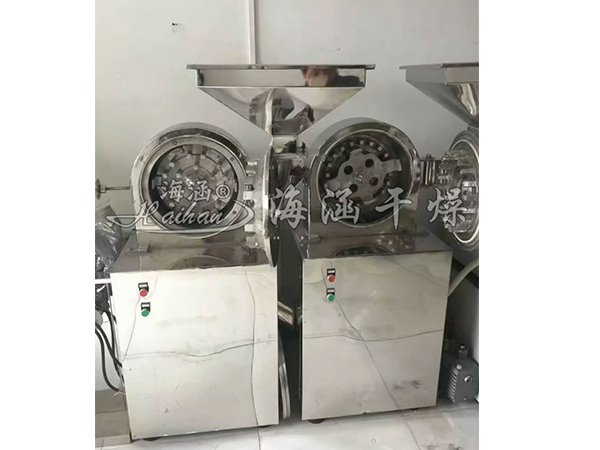

30B Ultra-micro pulveriser

Category: Granulating, mixing and crushing machine series

Introduction: Working PrincipleThis unit uses the relative motion between the movable tooth disc and the fixed tooth disc, so that the material is crushed by the tooth impact, friction and material each other; impact. The crushed material automatically enters the f…

+86-13906119320

Inquire

Product Info Pictures

Working Principle

This unit uses the relative motion between the movable tooth disc and the fixed tooth disc, so that the material is crushed by the tooth impact, friction and material each other; impact. The crushed material automatically enters the feeding bag by the action of rotating centrifugal force, and the dust is filtered and recovered by the dust box through the bag. The machine is designed according to ‘GMP’ standard, all made of stainless steel, no dust flying in the production process. And can improve the material utilisation rate, reduce the cost of enterprises, has reached the international level.

Equipment features

This machine (group) is suitable for pharmaceutical, chemical, food, pesticides and other industries, brittle materials crushed, set of crushing and dust as one of a new generation of crushing equipment, wide range of uses.

Technical Parameters

model number	unit (of measure)	20B/20B flight crew (on a plane)	30B/30B flight crew (on a plane)	40B/40B flight crew (on a plane)	60B/60B flight crew (on a plane)
production capacity	kg/h	60-150	100-300	160-800	500-1500
Spindle speed	r/min	4500	3800	3400	2800
Feed size	mm	6	10	12	15
Crushing fineness (mesh)	mesh	60~120	60~120	60~120	60~120
Grinding motor power	kw	4	5.5	11	15
Vacuum fan power	kw	0.55	0.55	1.5	2.2
weights	kg	250	320	550	680
Overall dimensions（L×W×H）	mm	550×600×1250	600×700×1450	800×900×1550	1000×900×1680
Overall dimensions (unit)（L×W×H）	mm	1100×600×1650	1200×650×1650	1400×700×2310	1550×1000×1750
