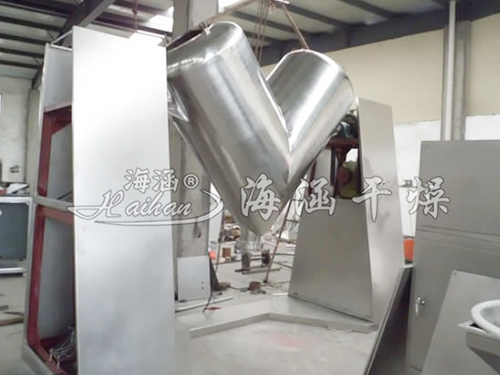

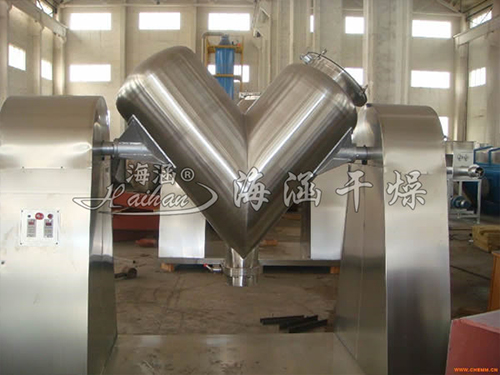

V-Mixer

Category: Granulating, mixing and crushing machine series

Introduction: Working PrincipleThis series of mixer to strong, efficient mixing as a feature, horizontal cylinder body two stirring equal speed reverse rotation, on the special arrangement of the paddle to ensure that the material radial, circular, axial three-way …

+86-13906119320

Inquire

Product Info Pictures

Working Principle

This series of mixer to strong, efficient mixing as a feature, horizontal cylinder body two stirring equal speed reverse rotation, on the special arrangement of the paddle to ensure that the material radial, circular, axial three-way movement, the formation of a composite cycle, in a very short period of time to achieve uniformity of mixing.

Equipment features

The mixing cylinder has unique structure, high mixing efficiency, no dead angle, the cylinder body is made of stainless steel, polished inside and outside wall, beautiful appearance, uniform mixing, wide range of uses, in line with GMP standards. And according to customer's requirement, it can be equipped with forced stirrer, which is suitable for mixing of fine powder, granule and block materials with certain moisture.

Scope of application

This machine is used for mixing more than two kinds of dry powdery and granular materials in pharmaceutical, chemical and food industries.

Technical Parameters

Specifications\Items	total volume L	working volume L	feedstock kg	Feeding speed rpm	propulsion kw	weights kg
0.05	50	25	15	25	0.55	500
0.15	150	75	45	20	0.75	650
0.3	300	150	90	20	1.1	820
0.5	500	250	150	18	1.5	1250
1	1000	500	300	15	3	1800
1.5	1500	750	450	12	4	2100
2	2000	1000	600	12	5.5	2450
3	3000	1500	900	9	5.5	2980
4	4000	2000	1200	9	7.5	3300
5	5000	2500	1500	8	7.5	3880
6	6000	3000	1800	8	11	4550
8	8000	4000	2400	6	15	5200
10	10000	5000	3000	6	18.5	6000
