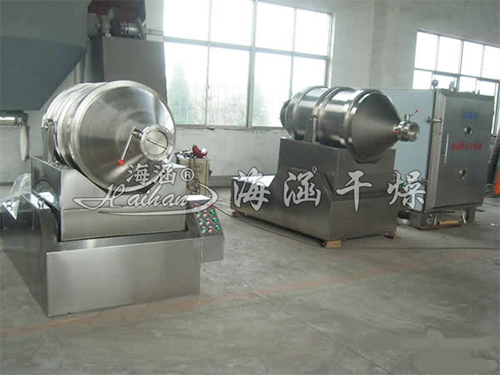

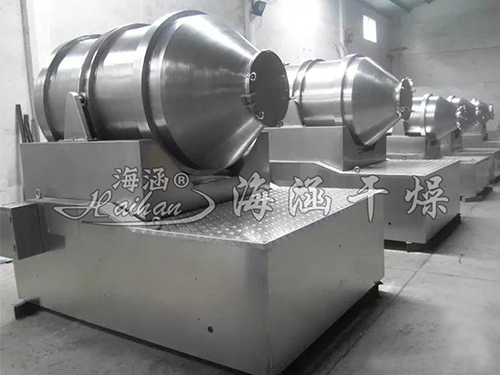

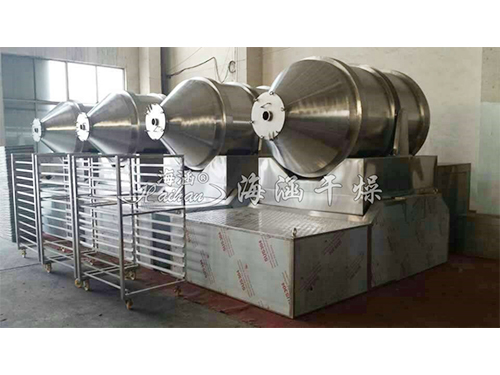

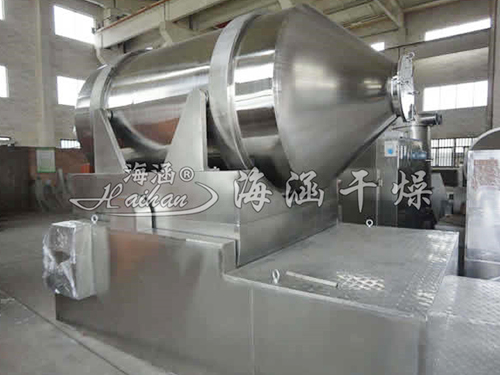

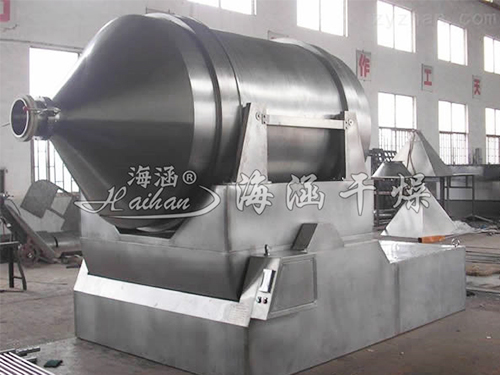

EYH series two-dimensional motion mixer

Category: Granulating, mixing and crushing machine series

Introduction: Working PrincipleThe two-dimensional mixer is mainly composed of three main parts: the rotating drum, the swinging frame and the frame. The rotating cylinder is mounted on the swing frame, which is supported by four rollers and axially positioned by t…

+86-13906119320

Inquire

Product Info Pictures

Working Principle

The two-dimensional mixer is mainly composed of three main parts: the rotating drum, the swinging frame and the frame. The rotating cylinder is mounted on the swing frame, which is supported by four rollers and axially positioned by two blocking wheels. Among the four supporting wheels, two of them are driven by the rotating power system to rotate the rotating cylinder, and the oscillating frame is driven by a set of crank and pendulum mechanism, which is mounted on the frame, and the oscillating frame is supported by the bearing assembly on the frame.

Equipment features

The rotating drum of EYH two-dimensional mixer can carry out two motions at the same time, one is the rotation of the drum, and the other is the swinging of the drum with the swinging frame. The materials to be mixed in the rotating drum with the drum rotation, turning, mixing at the same time, but also with the oscillation of the rotating drum and the left and right back and forth mixing movement occurs, under the joint action of these two movements, the materials in a short period of time to get the full mixing. EYH two-dimensional mixer is suitable for mixing all powder and granular materials.

Technical Parameters

model number	Cylinder volume(L)	Loading capacity (L)	Maximum loading capacity (kg/batch)	Shaking, number of revolutions r/min	Motor Total power(kw)	Outline Dimensions (X×Y×Z×Z)(mm)	total weight(kg)	Cylinder weight(kg)
EYH-60	60	36	18	50	0.4	700×730×1100×990	115	15
EYH-150	150	90	45	37	1.15	800×1050×1450×1340	190	50
EYH-300	3000	180	90	30	1.15	900×1350×1550×1400	340	60
EYH-600	600	360	180	23.6	3	1170×1640×2050×1910	1150	140
EYH-800	800	480	240	19.8	3	1320×1950×2150×2000	1600	200
EYH-1000A	1000	600	300	19.8	3	1300×2980×1890×1766	1700	240
EYH-1500A	1500	900	450	16.2	4.4	1500×3195×2150×2008	2000	320
EYH-2000A	2000	1200	600	16.2	7.4	1660×3305×2255×2120	2600	430
EYH-3000A	3000	1800	900	13.8	11	1860×3860×2570×2420	3500	620
EYH-4000A	4000	2400	1200	12.8	13	2010×4100×2755×2550	4100	700
EYH-6000A	6000	3600	1800	11.2	18.5	2280×4965×3172×2935	6100	1100
EYH-8000A	8000	4800	2400	10.4	22	2500×5200×3655×3200	7900	1450
EYH-10000A	10000	6000	3000	9	30	2600×5500×3750×3400	9500	1650
EYH-12000A	12000	7200	3600	7	30	3050×4850×4460×4090	10000	1800
EYH-15000A	15000	9000	4500	6	50	3100×5600×4700×4200	11000	2000
EYH-20000A	20000	12000	6000	6	60	3600×6100×5000×4500	12000	2500
