Horizontal screw belt mixer

Category: Granulating, mixing and crushing machine series

Introduction: Working PrincipleWLDH series horizontal screw belt mixer consists of container, screw mixing blades and transmission parts; screw blades are generally made into double or triple, the outer layer of the screw will be the material from both sides to the…

+86-13906119320

Inquire

Product Info Pictures

Working Principle

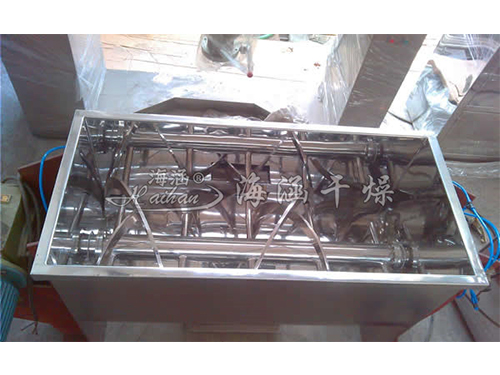

WLDH series horizontal screw belt mixer consists of container, screw mixing blades and transmission parts; screw blades are generally made into double or triple, the outer layer of the screw will be the material from both sides to the centre of the collection, the inner layer of the screw will be the material from the centre of the two sides of the conveyor, the formation of convection mixing. The volume can be made round so that the jacket can be used for reaction and drying.

Equipment features

Large loading coefficient, small equipment footprint;
Difficulty in cleaning when mixing viscous or cohesive materials.

Scope of application

The screw belt mixer is generally used for mixing viscous or cohesive powder and granular body, as well as powder and granular body in the addition of liquid and paste material mixing, at the same time, due to the viscous material cleaning difficulties, suitable for large output, infrequent replacement of varieties of occasions mixing.

Technical Parameters

Model &Specs	WLDH-0.1	WLDH-0.3	WLDH -0.5	WLDH -1	WLDH -1.5	WLDH -2	WLDH -3	WLDH -4	WLDH -6	WLDH -8	WLDH -10
Mixed amount/batch	30-50	100-150	200-300	400-600	600-900	800-1200	1200-1800	1600-2400	2400-3600	3200-4800	4000-6000
Equipped power	1.5-4	3-5.5	4-11	7.5-15	11-18.5	15-22	18.5-30	22-37	37-55	37-55	45-75
Dead Weight	300	500	900	1400	1900	2500	3100	3600	5300	6800	7800

EXCLUSIVE LOGISTICS SUPPORT CUSTOMIZATION

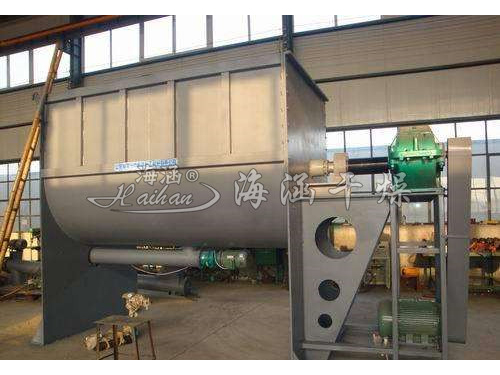

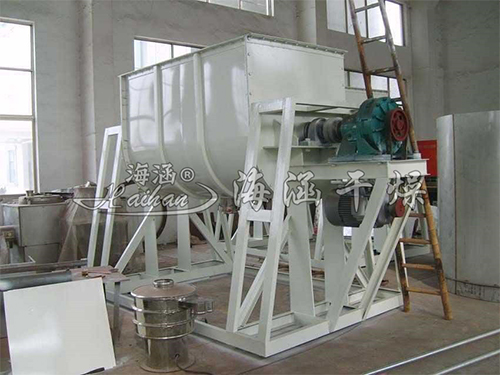

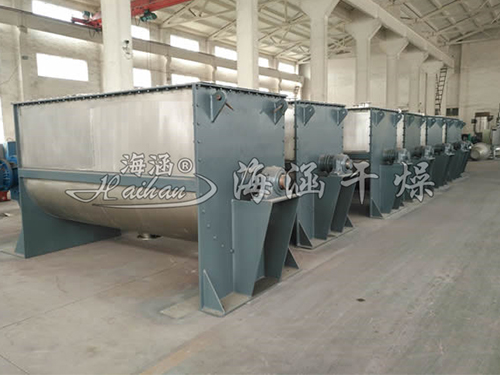

Picture Collection
