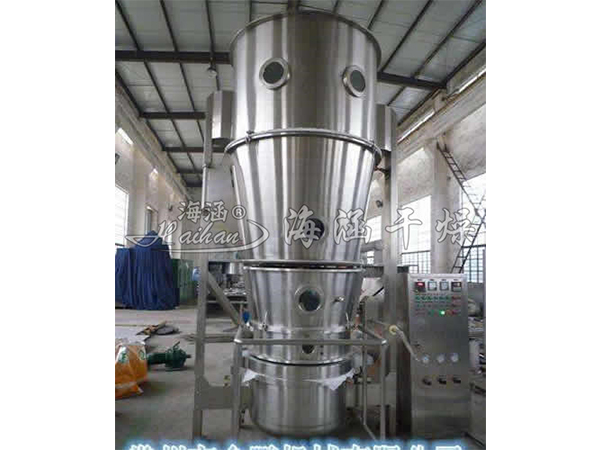

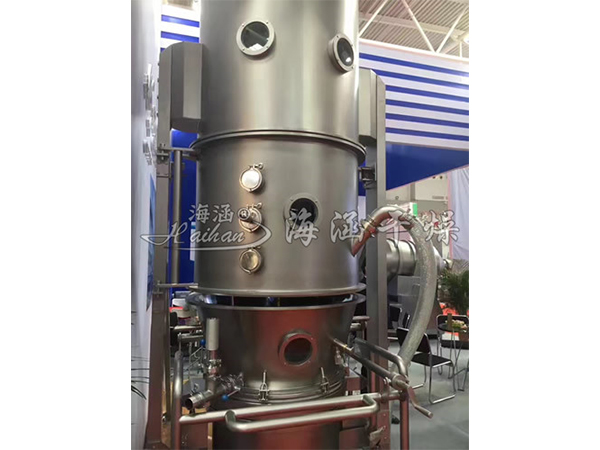

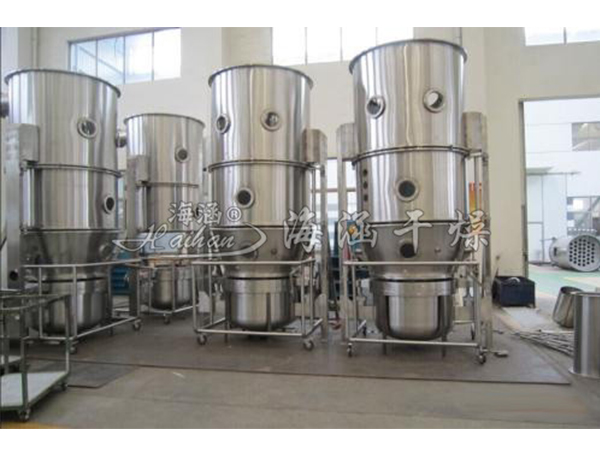

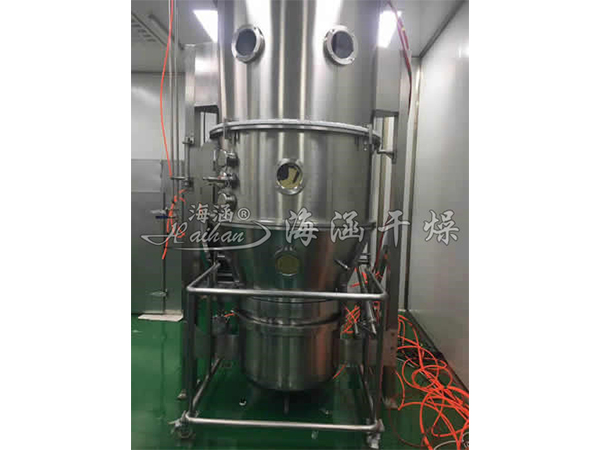

FL type boiling granulation dryer

Category: Granulating, mixing and crushing machine series

Introduction: Working PrincipleMaterial powder particles, in the raw material container (fluidised bed) in a boiling fluidised state, subjected to purified heated air preheating and mixing, will be sprayed into the atomisation of the binder solution, so that a numb…

+86-13906119320

Inquire

Product Info Pictures

Working Principle

Material powder particles, in the raw material container (fluidised bed) in a boiling fluidised state, subjected to purified heated air preheating and mixing, will be sprayed into the atomisation of the binder solution, so that a number of particles aggregated into the agglomerate containing binder, due to the continuous drying of the material by the hot air, so that the agglomerate in the evaporation of water, the binder coagulation, the process repeats itself, the formation of an ideal, uniform, multi-microporous spherical particles.

Equipment features

※ Improvement of flowability and reduction of dust by powder granulation;
※ Improvement of dissolution properties through powder granulation;
※ Mixing, granulation and drying are completed in one step in one machine;
※ Adopt anti-static filter cloth, equipment operation safety;
※ Pressure relief holes are set up so that the equipment personnel will not be injured in case of explosion;
※ The equipment has no dead corners, easy and fast loading and unloading, and clean washing, which meets the GMP specification.

Scope of application

※ Granulation in pharmaceutical industry: tablet granules, granules for flushing, granules for capsules.
※ Granulation in food industry: cocoa, coffee, milk powder, granulated fruit juice, flavouring, etc.
※ Granulation in other industries: pesticide, feed, fertiliser, pigment, dyestuff and chemical industry.
※ Drying of powdered or granular wet materials.
※ Coating: granule, pill protective layer, colour preparation, slow release, film, enteric coating, etc.

Technical Parameters

sports event		unit (of measure)	Type
			3	5		15		30	60		120	200	300	500
Raw material containers	Capacity	L	12	22		45		100	220		420	670	1000	1500
	calibre	㎜	300	400		550		700	1000		1200	1400	1600	1800
production capacity	minimal	㎏	1.5	4		10		15	30		80	100	150	250
	greatest	㎏	4.5	6		20		45	90		160	300	450	750
ventilator	air volume	m3/h	1000	1200		1400		1800	3000		4500	6000	7000	8000
	wind pressure	㎜H2O	375	375		480		480	950		950	950	950	950
	power (output)	kw	3	4		5.5		7.5	11		18.5	22	30	45
Steam consumption		kg/h	15	23		42		70	141		211	282	366	451
Compressed air consumption		m3/min	0.9	0.9		0.9		0.9	1.0		1.0	1.1	1.5	1.5
Main body weight		kg	500	700		900		1000	1100		1300	1500	1800	2000
vapour pressure		Mpa	0.3～0.6
temp		℃	Adjustable from room temperature to 120°C
operating time		min	Depends on material characteristics45～90
Material yield		%	≥99
noises		dB(A)	Fan and host isolated installation, noise ≤ 75dB (A)
Main Body Shape Dimension(L×W×H)		m	1.0×0.6 ×2.1		1.2×0.7 ×2.1		1.25×0.9 ×2.5	1.6×1.1 ×2.5		1.85×1.4 ×3	2.2×1.65 ×3.3	2.34×1.7 ×3.8	2.8×2.0 ×4.0	3×2.25 ×4.4
