Spray Dryer for Chinese Medicine Extract

Outlined

Spray dryer for Chinese medicine extract is a drying equipment developed by absorbing foreign technology and suitable for Chinese medicine products with low melting point and high sugar content. The device according to the characteristics and nature of the dry product to determine the spray drying process conditions, high degree of automation, easy to operate, in line with GMP requirements. The successful development of this equipment has solved the technical difficulty that many Chinese medicine products with low melting point and high sugar content can not be dried by spray drying for many years, and it is also the new development of the research on the application technology of spray drying in the pharmaceutical industry of Chinese medicine.

Equipment features

Special spray drying unit for traditional Chinese medicine has been improved in the design: High-speed centrifugal spray device for Chinese medicine extract is the application of centrifugal spray drying technology in specific material drying, and also the drying device that uses high-speed centrifugal atomiser to make the material dispersed into fine, and fully contact with the hot air to complete the instantaneous drying and form the powdered finished product. This drying equipment is specially used to solve the spray dryer for Chinese medicine extract and plant extract, which effectively solves many problems of the original LPG high-speed spray dryer in the drying of Chinese medicine extract, and has the following characteristics compared with the original LPG centrifugal spray dryer:
1, in order to prevent the material section produces sticky wall equipment with air sweeping wall, tower wall jacket cooling structure, effectively eliminate the product of sticky wall coking. Improve product quality and yield.
2、Special finished product air delivery system, the dry finished product in a timely manner with the system of hot and humid air separation, to avoid the finished product to produce moisture absorption back to the possibility of caking.
3、The air into the dryer adopts three-level air purification, so that the air inlet reaches 300,000 requirements;
4、Adopting quick-opening flushing selection device, suitable for multi-species production requirements;
5、Material collection adopts two-stage cyclone dust removal device or one-stage cyclone dust removal + wet dust collector;
6、Spray tower volume and configuration according to the nature of the material for the applicability of the adjustment, so that it is more practical;
7, can choose PLC control, programme control system screen display;
8, the whole drying system design and production in line with GMP specifications;
9, the user in the order according to the characteristics of the material section can choose A type, B type, C type one of them to achieve the adaptability between the equipment and the material section.

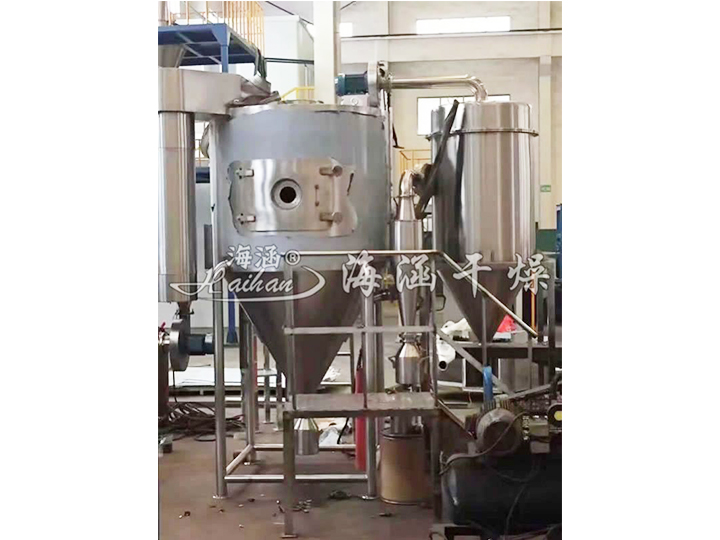

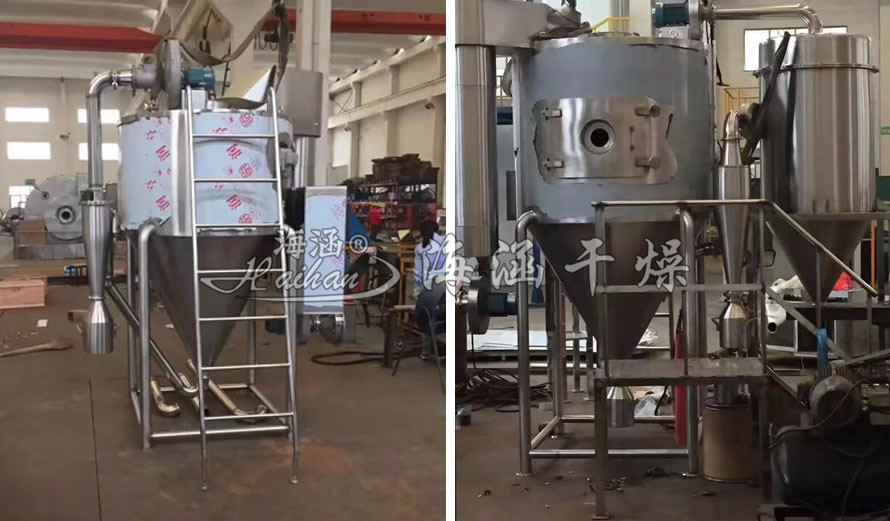

Project picture
