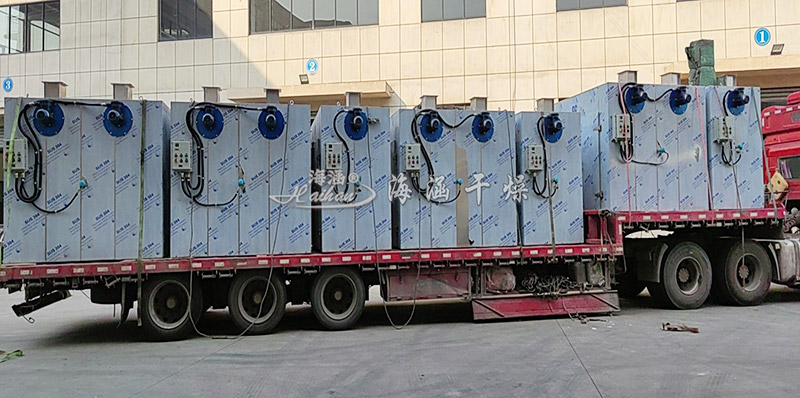

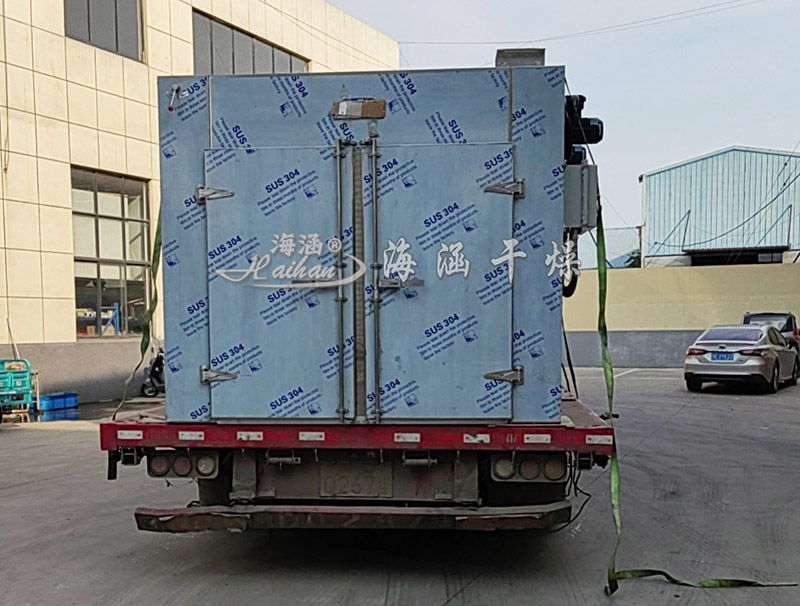

Hot Air Circulation Oven - The equipment ordered by the customer was successfully loaded and shipped!

      Hot air circulation oven is one of our star products, our main drying equipment, granulation equipment, crushing equipment, mixing equipment, dust removal equipment, etc., can meet the needs of customers in different industries, welcome your call to consult!

Product Introduction :
      CT-C type series hot air circulation oven with low noise and high temperature axial fan and automatic temperature control system, the whole circulation system is fully closed, so that the thermal efficiency of the oven from the traditional drying room 3-7% to the current 35-45%, the thermal efficiency of up to 50%. It saves a lot of energy for our country and improves the economic benefit of the enterprise. 1990 by the State Pharmaceutical Administration issued the industry standard, the unified model is RXH.

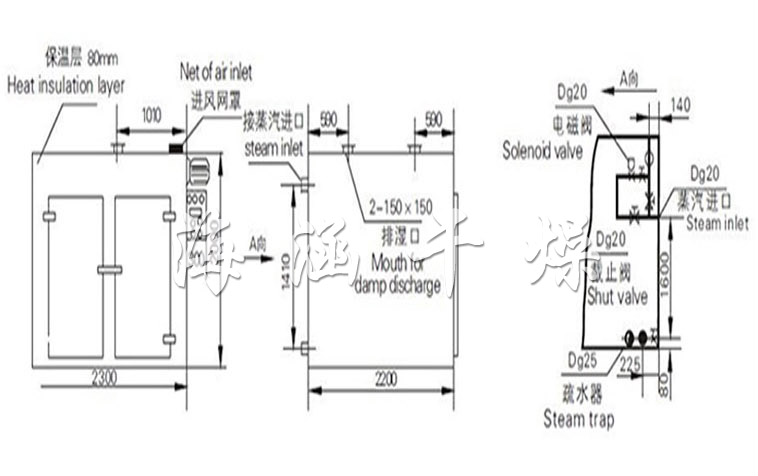

Structure schematic diagram:

◎Heating heat source has steam, electricity, far-infrared, electric steam dual-use, for users to choose;
◎ Use temperature: steam heating 50 ~ 140 ℃, the temperature can reach 150 ℃;
◎ With electricity, far infrared temperature 50 ~ 350 ℃;
◎Automatic control system and computer control system are available for users to choose;
◎ Commonly used steam pressure 0.02-0.8Mpa (0.2-8kg/m2);
◎ Equipped with electric heating, according to the calculation of I type 15KW, practical 5-8kw/h;
◎Special requirements at the time of ordering instructions;
◎ Non-standard oven price negotiable;
◎ The use of temperature greater than 140 ℃ or less than 60 ℃, to be specified at the time of ordering;
◎The factory factory drying car, drying disc size unity, can be interchanged;
◎ Drying disc size: 460 × 640 × 45 (mm).

Performance Characteristics:
Most of the hot air circulates in the box, high thermal efficiency, energy saving. Using the role of forced ventilation, the box is equipped with adjustable air separation board, material drying uniformity, the heat source can be steam, hot water, electricity, far infrared, a wide range of choices. The whole machine has low noise and balanced operation. Temperature self-control, easy to install and maintain. Wide range of application, can dry all kinds of materials, is a universal drying equipment.

Applications:
  It is suitable for heating and curing, drying and dewatering of materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. Such as raw materials, traditional Chinese medicine, Chinese medicine tablets, extracts, powder, granules, punch, water pills, packaging bottles, pigments, dyes, dehydrated vegetables, dried fruits and melons, sausages, plastic resins, electrical components, baking paint and so on.
