Spray drying is a process applied in the liquid process forming and drying industry. It is suitable for generating solid products in the form of powders and granules from solutions, emulsions, suspensions and pasty liquid raw materials. Spray drying is therefore an ideal process when the particle size distribution, residual moisture content, bulk density and particle shape of the finished product must meet precise criteria.

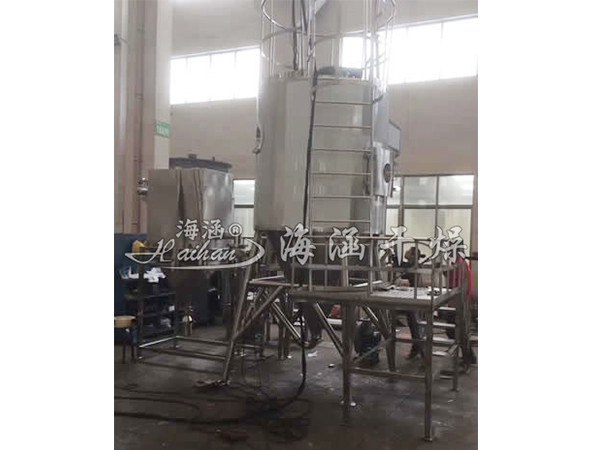

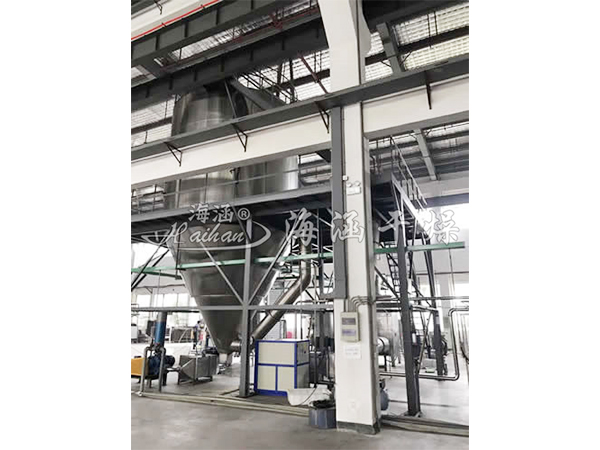

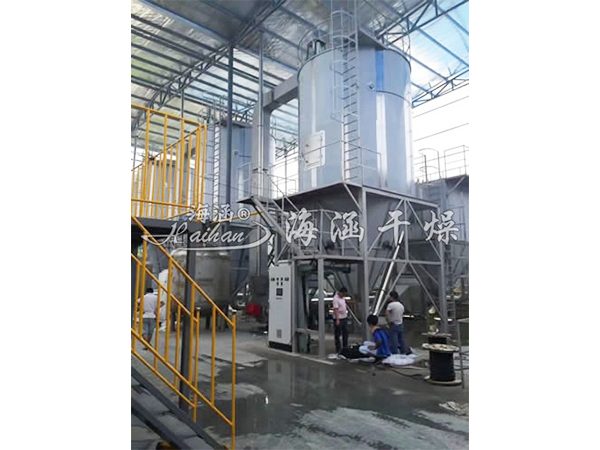

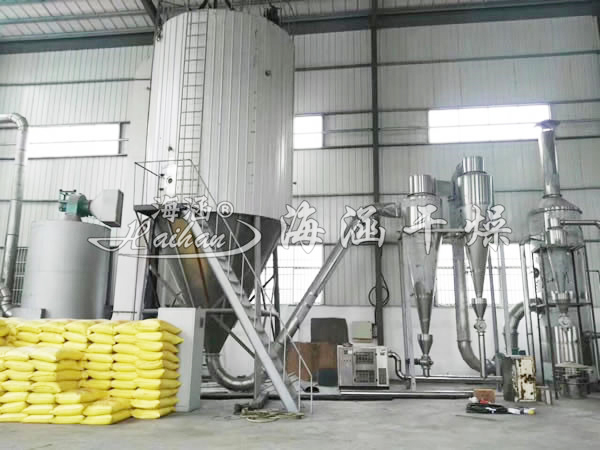

The air is filtered and heated, and enters the air distributor at the top of the dryer, and the hot air enters the drying chamber uniformly in a spiral shape. The material liquid is sprayed into very fine mist beads by the high-speed centrifugal atomiser at the top of the tower (rotating), and can be dried into finished products in a very short time by contacting with the hot air in parallel flow. The finished products are continuously output from the bottom of the drying tower and the cyclone separator, and the exhaust gas is exhausted by the fan.

Equipment features

The drying speed is fast, the surface area of the material is greatly increased after atomisation, and 95%-98% of the water can be evaporated instantly in the hot air stream, and the drying time takes only a few seconds, especially suitable for drying heat-sensitive materials.
The product has good uniformity, fluidity and solubility, high purity and good quality.
The production process is simplified and the operation control is convenient. For the moisture content of 40-60% (special materials can be up to 90%) of the liquid can be dried into powder products, drying without crushing and screening, reducing the production process, improve product purity. The product particle size, bulk density, moisture, within a certain range can be adjusted by changing the operating conditions, control and management are very convenient.

Scope of application

Chemical industry: sodium(potassium) fluoride, alkaline dyestuff and pigment, dyestuff intermediates, compound fertilizer, formaldehyde silicic acid, catalyst, sulphuric acid, amino acid, white carbon black, etc.
Plastic resin: AB, ABS emulsion, urea-formaldehyde resin, phenol-formaldehyde resin, urea-formaldehyde resin, polyethylene, polyvinyl chloride and so on.
Food industry: fat-enriched milk powder, tickle prion, cocoa milk powder, milk replacer, hunting blood powder, egg white (yolk) and so on.
Food and plant: oats, chicken juice, coffee, instant tea, flavoured meat, protein, soybean, peanut protein, hydrolysate, etc.
Sugars: corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, etc.
Ceramics: aluminium oxide, tile materials, magnesium oxide, talcum powder, etc.

Technical Parameters

Model Item/Parameter	5	25	50	150	200-2000
inlet temperature	140-350 self-control
outlet temperature	75-90
Maximum evaporation of water（kg/h）	5	25	50	150	200-2000
Centrifugal spray head drive form	Compressed air drive	mechanical drive
Maximum speed（r.p.m）	25000	18000	18000	15000	8000-15000
Spray disc diameter（mm）	50	100	120	150	180-340
heat source	电	Steam + Electricity	Steam + electricity, oil, gas, hot air furnace
Maximum power of electric heating（kw）	9	36	63	99
Overall dimensions (L×W×H)（m）	1.8×0.93×2.2	3×2.7×4.26	3.7×3.2×5.1	5.5×4.5×7	Determined on a case-by-case basis
Dry Powder Recovery（%）	≥95

Note: The evaporation of water is related to the characteristics of the material and the hot air inlet and outlet temperatures. When the outlet temperature is 90oC, the water evaporation curve is shown in the above diagram (for selection reference), with the continuous updating of the product, the relevant parameters change without prior notice.


Ordering instructions
◎ Material name, physical properties: solid content (or water content), viscosity, surface tension, PH value.
Capacity of powder after drying, permissible residual moisture content, particle size, permissible maximum temperature.
◎Production capacity, daily opening time.
◎Available energy: steam pressure available, electric capacity, available coal, oil, gas combustion.
◎Control requirements: whether the inlet and outlet temperatures need to be self-control.
◎Powder collection requirements: whether to install bag catchers, the environment on the emission of exhaust gas requirements.
Other special requirements.

 Technical specification

sizes	A	B	C	D	E1	E2	F	G	H	I
LPG-25	1290	3410	4260	1800	1200	1200	1000	1700	1300	1550
LPG-50	1730	4245	5100	2133	1640	1640	1250	1750	1800	1600
LPG-100	2500	5300	6000	2560	2100	2100	1750	1930	2600	1780
LPG-150	2800	6000	7000	2860	2180	2180	1970	2080	3050	1960
LPG-200	2800	6600	7300	3200	2300	2300	2210	2250	3050	2100
LPG-300	2800	8000	8700	3700	2800	2800	2520	2400	3040	2250
