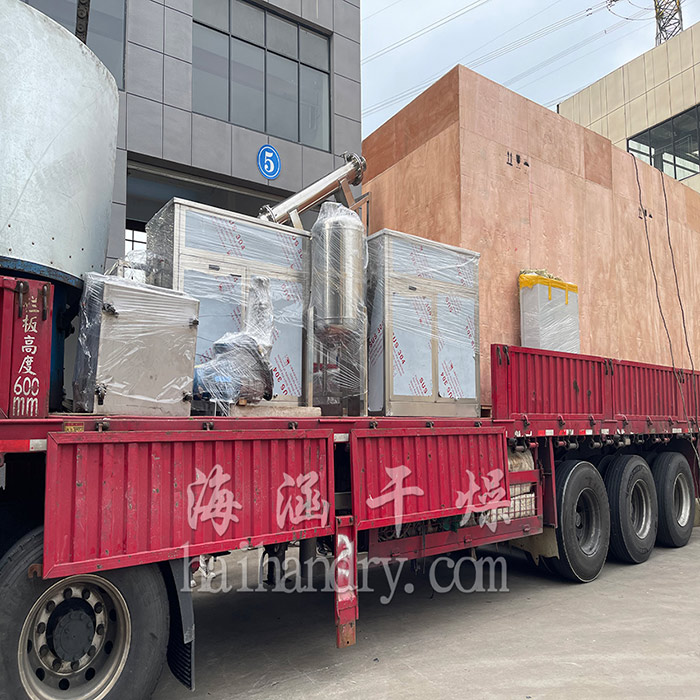

ZXLG-150 Single Cone Screw Belt Vacuum Dryer, SYH-150 Three-dimensional Mixer--Haihan Drying is professionally manufactured and successfully sent away!

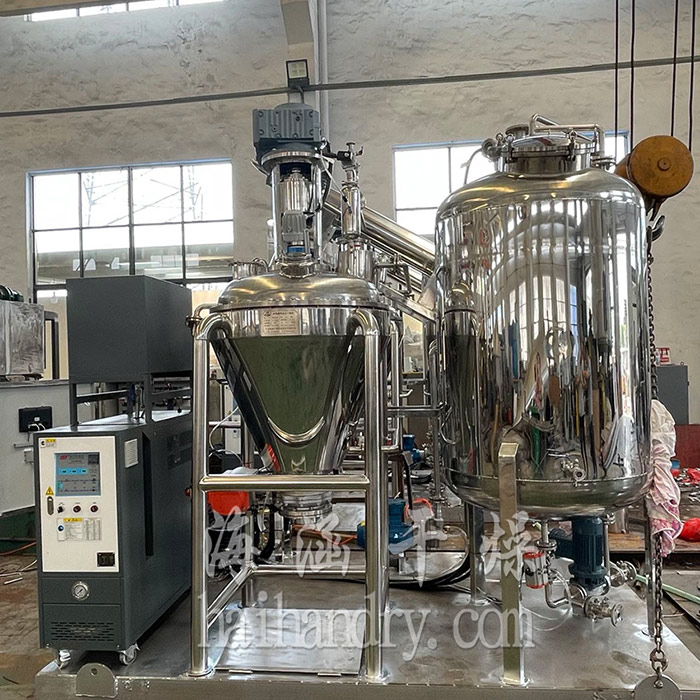

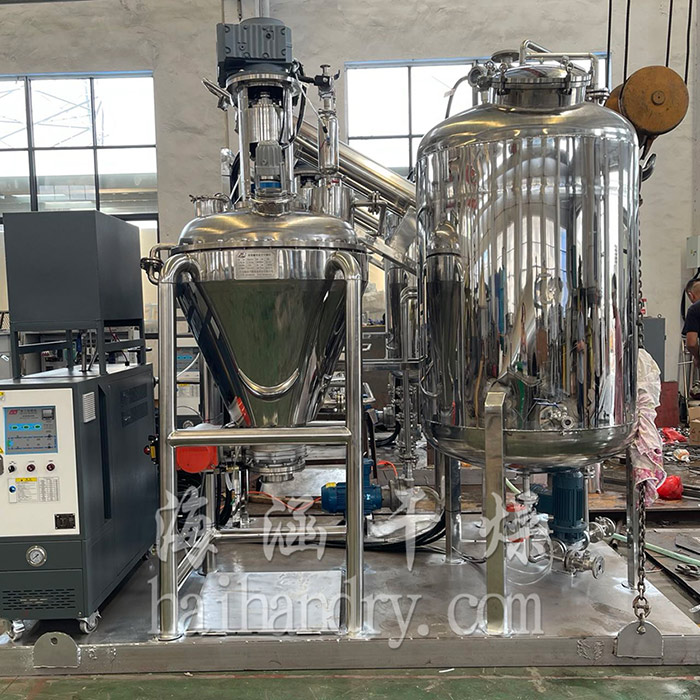

ZXLG-150 Single Cone Screw Belt Vacuum Dryer Overview

Cone Mixing Vacuum Dryer is a multifunctional dryer integrating mixing and vacuum drying. The material is heated and stirred in the tank, the moisture evaporated by heating is pumped out by vacuum pump, and the dried material is discharged from the bottom outlet of the cone. Conical dryer has high drying efficiency, large drying contact surface, fast material discharge and no dead angle, cleaning is also more convenient. It can replace the mixing and drying equipment at the same time (such as: double cone dryer, rake dryer, double cone mixer and twin-screw mixer, etc.) in the same equipment to complete the mixing, drying, discharging the whole process. Can also be cooled, anti-bacteria, reaction and other operations. It can be widely used in pharmaceutical, chemical, pesticide, food and other industries. It is the equipment for mixing and drying, which can realise the whole closed and continuous operation of the whole process.



ZXLG-150 Single Cone Vacuum Dryer Application Scope

Stirring, mixing and drying of materials in chemical industry, pesticide, dyestuff, medicine, fertiliser, metallurgy, mining, food, plastics, additives and other industries. Internal heating screw belt conical vacuum dryer is a use of screw belt will rotate the material to lift and cone jacket, hollow screw belt at the same time through the heat transfer medium (such as hot water, thermal oil, steam, etc.), so that the heated material from the four sides of the lifting and falling from the middle, rapid and continuous cycle of turning, and through the cylinder body vacuum will be taken away from the water vapour in a timely manner, so that the material to achieve the purpose of drying and mixing in a short period of time. Compared with the traditional vertical mixer, there is no transmission mechanism in the cylinder body, which fundamentally prevents material contamination due to the leakage of lubricating oil, and it runs reliably and stably, especially suitable for powder and granule mixing with high hygiene requirements; at the same time, it is also suitable for the mixing and blending of viscous fluid or thick and wet materials; compared with other horizontal dryers, it has the advantages of convenient discharging, which can be 100% discharged, and it is convenient for operation and maintenance. Compared with other horizontal dryers, it has the advantages of convenient discharge, 100% complete discharge, convenient operation and maintenance. Its drying efficiency is 3-5 times higher than the same specification of ‘Double Cone Rotary Vacuum Dryer’.



Features of ZXLG-150 Single Cone Screw Belt Vacuum Dryer

1. The machine is driven by the reducer to rotate the stirrer directly.

2. Wide range of application, can be used for powder and powder, powder and liquid mixing, can also be used as reaction equipment, drying equipment.

3. Spraying device can be added according to users' requirements, and the sterile screw belt vacuum dryer can spray the appropriate amount of liquid into the material.

4. The rotating speed can be adjusted according to the process needs, when the rotating speed is low, its drying effect dominates; when the rotating speed is fast. When the speed is faster, the mixing action is dominant, so by choosing this equipment, it can be the original need for two kinds of equipment in order to achieve the purpose, can now be combined into one, saving costs.

5. The cylinder can be designed into a jacketed form, when the jacket with a certain temperature medium, to meet the user's requirements for process temperature control.

6. It can be designed to meet the vacuum or pressure working conditions of the equipment.

7. It can increase the shredding device, screw belt vacuum dryer, can shred any size of aggregates to meet the process requirements.

8. A variety of sealing devices are available: packing seal, mechanical seal, lip seal.

9. A variety of discharge valves are available: butterfly valve, ball valve, hemispherical valve, knife gate valve.

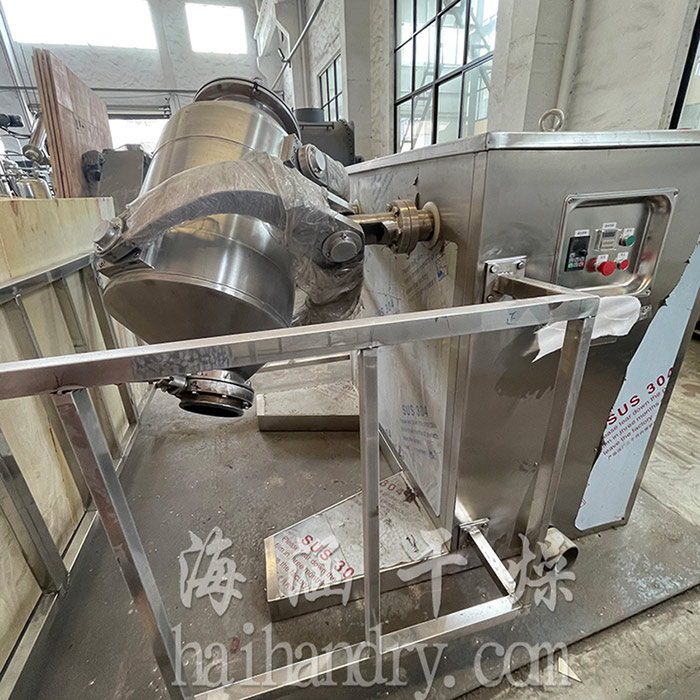

1.SYH-150 three-dimensional mixer performance characteristics

  Charging the cylinder driven by the main shaft, for weeks and weeks of translation, rotation and tumbling and other composite movements, prompting the material along the cylinder for the three-way compound movement, so as to achieve a variety of materials flow each other, diffusion, accumulation, admixture. To achieve the purpose of uniform mixing.



2. SYH-150 three-dimensional mixer adaptable materials

 ◎ The machine mixing cylinder multi-directional movement, the material without centrifugal force, no specific gravity segregation and stratification, accumulation phenomenon, each component can have a different weight ratio, mixing rate is high, is currently a variety of mixers in the more ideal products.

 The loading rate of the cylinder is large, up to 90% (only 50% for ordinary mixer), high efficiency and short mixing time.

 All parts of the cylinder are rounded and polished.

 ◎ Used in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, state

◎ For high uniformity mixing of powdery and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national defence industry and various scientific research units.
