Evaporator Series

Products

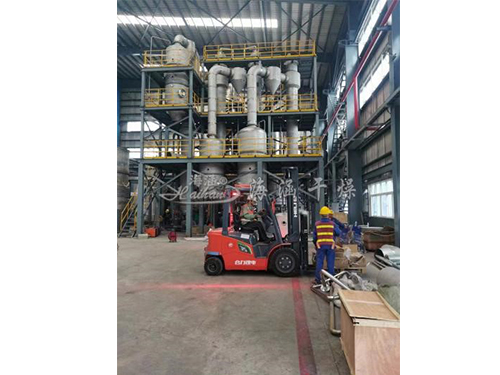

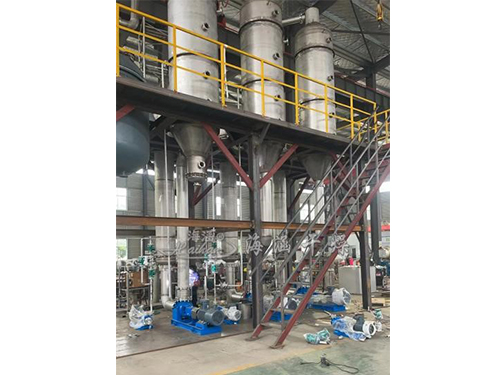

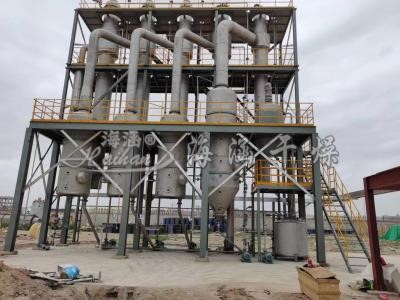

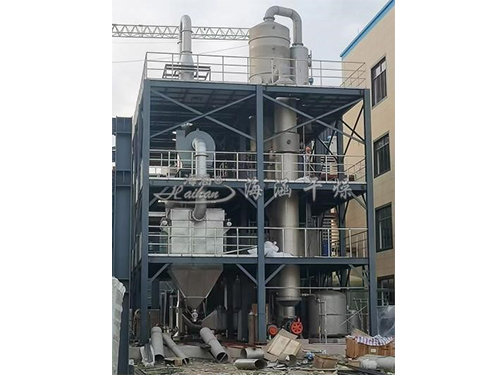

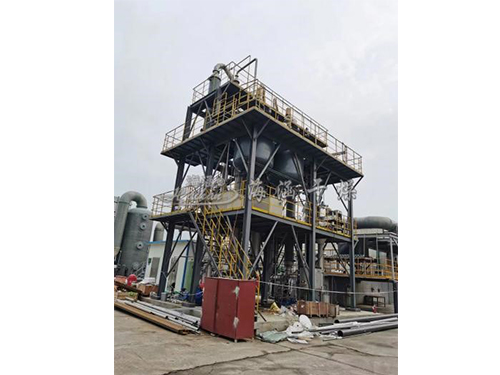

Three-effect energy-saving evaporator

Category: Evaporator Series

Introduction: Working PrincipleGradually evaporate the water in the solution through multi-stage evaporation to achieve concentration and separationEquipment features◎ This equipment adopts the working principle of external heating of tube circulation, the materia…

+86-13906119320
Inquire

Working Principle

Gradually evaporate the water in the solution through multi-stage evaporation to achieve concentration and separation

Equipment features

◎ This equipment adopts the working principle of external heating of tube circulation, the material is heated for a short time, evaporation speed is fast, the concentration ratio is significant, and the original effect of the material is effectively maintained.

◎ Energy saving effect is remarkable, saving 30% of steam than single-effect evaporator. The material is evaporated and concentrated in the closed system, the environment is clean and comfortable; and the unique defoaming device of this system equipment prevents the phenomenon of running material.

◎ Where the material contact parts are made of imported stainless steel, and polished, good corrosion resistance equipment, cleaning is more convenient, more in line with the pharmaceutical, food hygiene regulations. Can be equipped with microcomputer control system, easier to use, more stable results.

Technical Parameters


Model
Specification


WZ3-1000

WZ3-1500

WZ3-2000

WZ3-3000

WZ3-5000

WZ3-8000

Evaporation capacity (clear water Kg/h)

1000

1500

2000

3000

5000

8000

vapour consumption(Kg/h)

≤400

≤600

≤800

≤1200

≤2000

≤8000

Overall Dimension Length×Width×Height(m)

6.5x1.5x3.3

7x1.7x3.5

7.5x2x4

8x2x4.5

7.8x2x4.3

9x2.5x5

First heating area(m²)

8

12

16

20

40

60

evaporation
Temperature


(℃)

have the same effect

85-95;0.02-0.04

synergy

70-80;vacuum(MPa); 0.05-0.06

triple effect

55-65;0.08-0.09

vapour pressure (MPa)

0.25

0.25

0.25

0.25

0.25

0.25

Uneffective condensing area(m²)

12

20

25

36

55

90

Equipment weight (Kg)

2200

3000

3750

4600

5300

6800

Type of packaging


Class I pressure vessel
