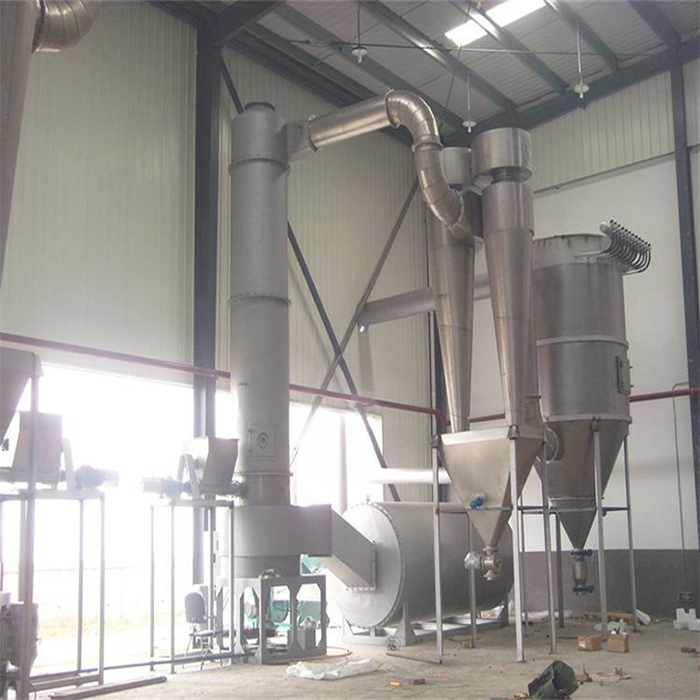

XSG fast rotary flash vapour dryer operation specification

1、Driving procedure

The transmission equipment by the disc flexible, normal, ready for all positions, safe and error-free release can be warmed up, start driving.

(1) first start the induced draft fan, then start the blower, so that the two butterfly valves open in the required scale, to ensure that the gas flow. Adjust the opening degree of the butterfly valve of the induced draft fan, so that the dryer works under slightly negative pressure.

(2) Start the air compressor, control and regulate the multi-channel compressed air in the design pressure process conditions, open the tower under the bearing box cooling water pipe.

(3) Turn on the bag pulse controller blowback system, and adjust the blowback frequency to ensure that the gas inlet pressure of 0.5-0.6Mpa work.

(4) Put the wet material <before putting into the water content must be measured> into the feeding hopper, start the mixer, mixing materials

(5) open the gas valve into the gas ignition heating, so that the dryer air inlet temperature rises gradually, when the dryer air outlet temperature exceeds 110 ° C, start the feed motor, adjust and control the charging speed to ensure that the outlet temperature is stable at 90 ° C-100 ° C. The temperature of the dryer will rise to 350-400 ° C when the inlet temperature reaches 350-400 ° C. The temperature of the dryer will rise gradually. To be imported when the temperature reaches 350-400 ° C, re-adjust the feed motor speed, control the dryer tower import, export temperature in the design temperature process conditions.

(6) Observe whether the equipments (and other parts) in the system are running normally.

(7) Take samples to test the quality of dry powder materials qualified packaging, storage.



2、Stopping procedure

(1) Firstly, stop the agitator stirring in the wet material tank, and then stop the spiral feeder feeding.

(2) Continue to blow dry the remaining material in the dryer and take it out of the machine, after half an hour, turn off the gas and stop gas heating. After that, stop the air supply fan to send air, and then stop the induced draft fan to draw air.

(3) Stop the air compressor, stop the bag filter blowback system, turn off the cooling water, turn off the tower motor.

(4) Stop the instrument control.



3、Possible abnormalities and exclusion

In the drying operation mainly control the dryer in the air flow, air inlet and outlet temperature, charging volume. Among them, the charging amount is regulated as a variable from the wind.

(1) in the gas inlet temperature must be, other conditions are normal, the gas outlet temperature is high, slowly increase the speed of the feeder to increase the amount of feed, so that the gas inlet temperature down to the required temperature, anyway, the gas outlet temperature is low, affecting the moisture content of the dry product, it will reduce the speed of the spiral feeder, reduce the amount of feed, so that the gas outlet temperature rises to the required temperature.

(2) dryer gas inlet temperature is high, when the drying tower negative pressure is low to reduce the feeding rate to be in the tower negative pressure back to stable and then re-adjust the feeding rate to ensure that the export temperature of 90 ° C

(3) system pressure imbalance, check whether the system has a leak or blockage, and whether the pressure measurement tube is blocked.

(4) When there is powder coming out of the gas outlet of the bag filter, check whether the bag is detached or broken, and replace or repair it in time.

(5) suddenly long power outage, the dryer should be cleaned to prevent the machine wet material dry and hard, plug the dryer ring gap, as well as driving again to affect product quality.

(6) such as a sudden increase in system pressure, and can not be eliminated, we must immediately cut off the power supply, the operator quickly leave the scene of the operation, in order to prevent the leakage of explosive personal injury.
