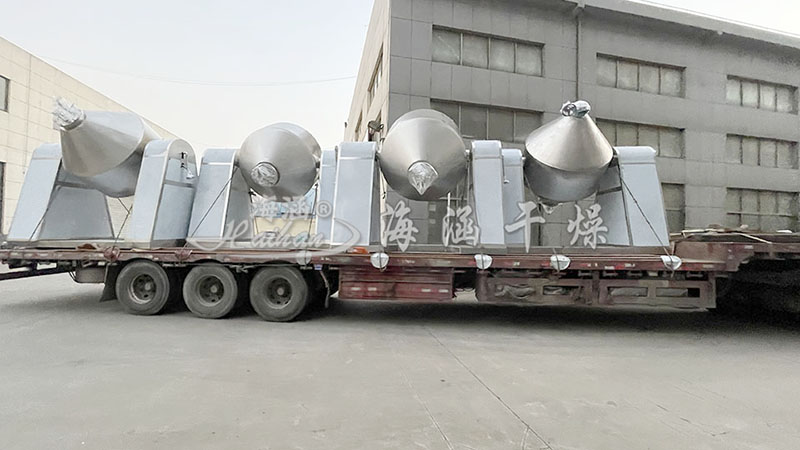

Double cone rotary vacuum dryer-Professional equipment is trustworthy. The equipment ordered by the customer was sent away successfully!

  Double cone rotary vacuum dryer is one of the main products of our company. This equipment is widely used in metal powder, thermal sensitivity, easy oxide material and so on. Haihan Drying specialises in making drying equipment, chemical equipment, sludge treatment and other equipment. Welcome to visit our company.

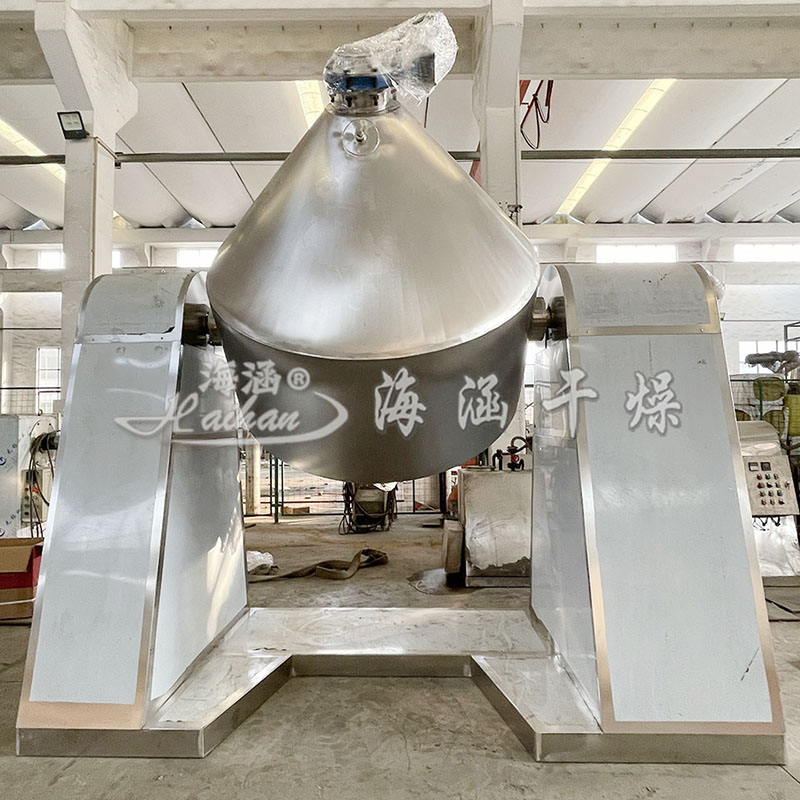

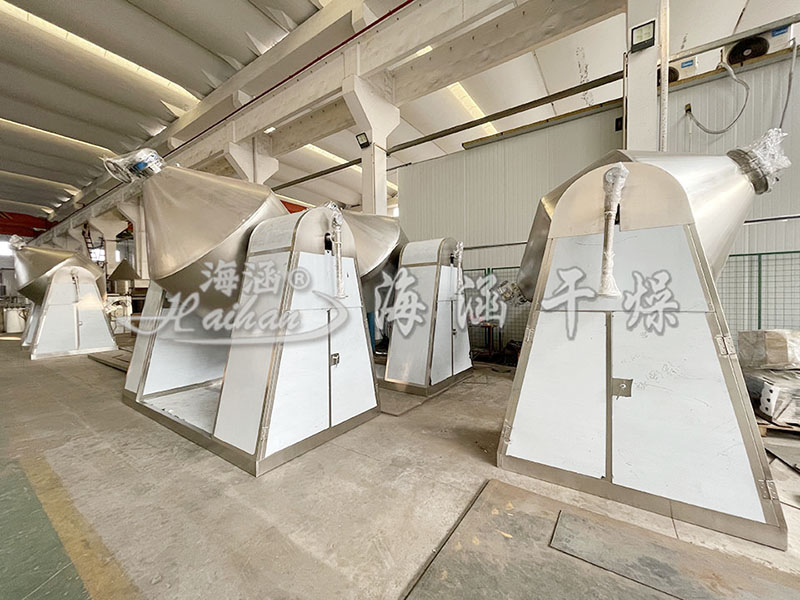

SZG-2300 Double Cone Rotary Vacuum Dryer Product Overview:

      SZG double cone vacuum dryer is a new generation of drying device developed by our factory by combining the technology of similar products in China. The double cone vacuum adopts the belt-chain two elastic coupling mode, thus the equipment runs smoothly. The specially designed process fully reflects the good concentricity of the two shafts, and the heat medium and vacuum system adopt reliable mechanical seal or rotary joint of American technology. On this basis, we have developed SZG-A it can both stepless speed regulation and constant temperature control.

  As a professional drying equipment manufacturer, our products range from high-temperature heat-conducting oil as the heat medium, medium-temperature steam and low-temperature hot water. When drying viscous materials, our factory will specially design the ‘copy board’ mechanism or set the ball in the tank for you.

The working principle of SZG-2300 Double Cone Rotary Vacuum Dryer:

       ◎ In the airtight jacket, heat energy (such as hot water, low pressure steam or thermal oil) is fed into the tank, and the heat is transferred to the material to be dried through the inner shell.

       Under the power drive, the tank rotates slowly, and the materials inside the tank are mixed continuously, so as to achieve the purpose of intensive drying.

       The material is in the vacuum state, the vapour pressure drops so that the water (solvent) on the surface of the material reaches saturation and evaporates, and is discharged by the vacuum pump in time for recovery. The water (solvent) inside the material continuously infiltrates to the surface, evaporates and discharges three processes continuously, and the material achieves the purpose of drying in a very short time.

Applicable materials:

    Suitable for chemical, pharmaceutical, food and other industries of powder, granular and fibre concentration, mixing, drying and low-temperature drying of materials (such as biochemical products, etc.). More suitable for easy oxidation, volatile, heat-sensitive, strong stimulation, toxic materials and materials that do not allow the destruction of crystalline materials drying.

Performance characteristics:

       ◎When the oil is heated. The use of automatic thermostatic control. It can dry biochemical products

       and mineral raw materials, the temperature can be between 20～160℃.

       ◎High thermal efficiency, more than 2 times higher than the general oven.

       Indirect heating. The material will not be contaminated, in line with the ‘GMP’ requirements. Easy maintenance and operation of the equipment, easy to clean.

       Recommended process placement model solvent recovery process placement.
